Fuse Bases For Square Pipe Fuses With Knife Contacts

Short Description:

Place of Origin: Zhejiang, China
Brand Name: MIRO
Model Number: RT16/NH/NT
Usage: LOW VOLTAGE
Breaking Capacity: 100kA
Safety Standards: IEC60269&GB13539
Product name: RT16/NH/NT
Rated current: 6-1250A
Material: ceramic
Rated voltage: AC690V/DC440V
Application: a full-range breaking capacity for general application
Fuse type: Fuse Holder Types

Send email to us

Product Detail

Product Tags

The bases are made up of high-density ceramic, heat-resistant resin board and wedge-shaped static contacts in a open structure. The product is featured with good heat sinking, high mechanic density, reliable connection and simple cperation.
It is available for all NH000-NH4 fuses.

Fuse Bases For Square Pipe Fuses With Knife Contacts

Product Overview

This series fuse is suitable for AC 50Hz, rated voltage to 690V, rated current to 1250A, for overload and short circuit protection in electrical wiring(gG/gL).Because of different melting tablets,it also may derive for protecting the semiconductor device and its complete set installment from short circuit(aR/gR/gs/gtr)、as well as the electric motor from short circuit(aM). The rated breaking capacity up to 50kA. They conform to GB13539.2 and IEC60269-2

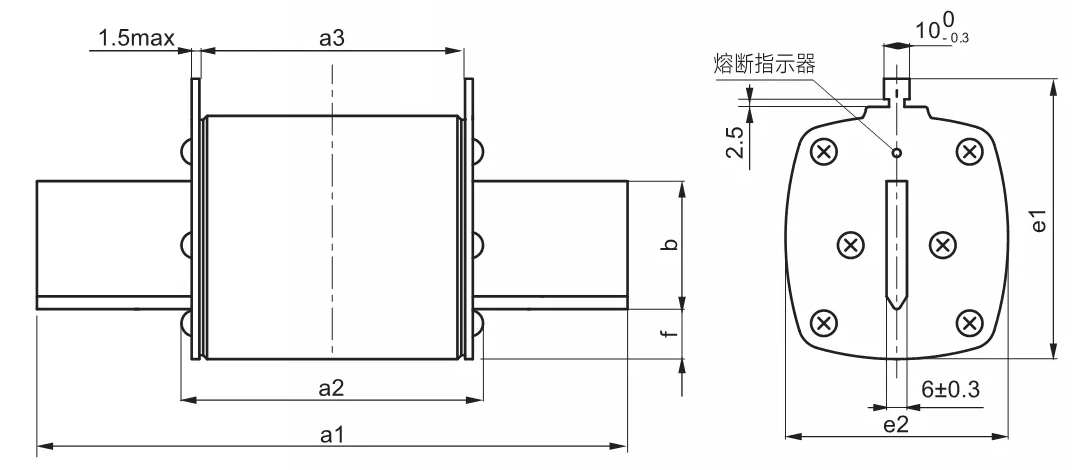

Dimensions/(mm)

	RT16-00	RT16-1	RT16-2	RT16-3
a1	78.5±1.5	135±1.5	150±2.5	150±2.5
a2	54	72	72	72
a3	45±1.5	62±1.5	62±2.5	62±2.5
f(max)	15	15	15	15
b±0.2	15	20	25	32
e1±3	57	62	72	82
e2	29±1	48±2	58±2	67±3

TECHNICAL PARAMETERS

Type	Figure No.	Rated current (A)	Watts Loss (W)	Energy lntegrals 't(A's)500V		Fuse Holder Type	Fuse Handle Type
Type	Figure No.	Rated current (A)	Watts Loss (W)	Pre-Arcing l't	Total l't	Fuse Holder Type	Fuse Handle Type
RT16-00 (NHOO)	00	6	1.7	14	137	Sist101	NH/NT
		10	2	60	280
		16	3.1	280	960
		20	3.3	580	2200
		25	3.5	1050	3900
		32	4.1	2050	5900
		40	4.9	3800	9700
		50	5.3	5200	13500
		63	6.3	6600	20500
		80	6.9	10500	30500
		100	8.5	19500	59000
		125	9.5	39500	119000
		160	11.5	72000	192000
RT16-1 (NH1)	1	80	7.8	9900	29800	Sist201	NH/NT
		100	9.6	19000	55000
		125	11.5	39000	118000
		160	12.8	69000	185000
		200	15	119000	260000
		224	17	169000	390000
		250	20	240000	498000
RT16-2 (NH2)	2	125	12	39000	118000	Sist401	NH/NT
		160	13.5	68000	175000
		200	16	99000	250000
		224	17.5	155000	380000
		250	21	220000	485000
		300	24	340000	750000
		315	25	380000	860000
		355	28	525000	1170000
		400	31	720000	1550000
RT16-3 (NH3)	3	315	25	380000	860000	Sist601	NH/NT
		355	29	510000	1150000
		400	31	720000	1650000
		425	34	885000	1980000
		500	38	1240000	2950000
		630	44	1820000	5300000

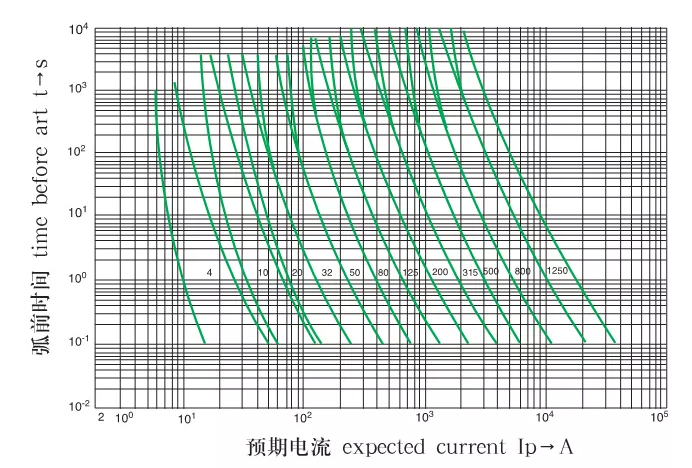

Characteristic curve （Size code 00,1,2,3）

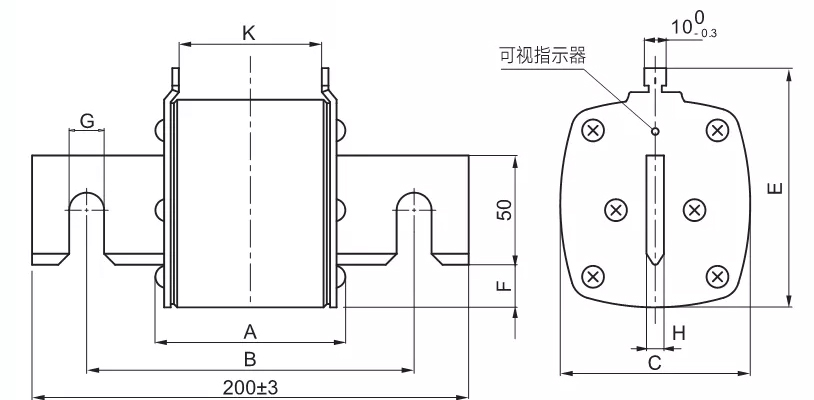

Dimensions/(mm)

Figure No.	A(Max)	B±2.5	C±1.5	E(Max)	F(Max)	K	H±0.2	G±0.5
4	90	150	100	120	25	62±2.5	8	16
4a (500-1250A)	90	-	100	120	30	84±3	6	-

Technical Parameters

Type	Figure No.	Rated current (A)	Watts Loss (W)	Energy Integrals l't(A²s)500V		Fuse Holder Type
				Pre-Arcing 't	Total l't
RT16-4 (NH4)	4	500	60	975	2250	Sist1001 Sist1001-1
		530	70	1732	4520
		800	90	3150	8725
		1000	100	5665	15700
		1250	110	12100	28300
RT16-4a (NH4a)	4a	500	60	975	2250
		630	70	1732	4520
		800	90	3150	8725
		1000	100	5665	15700
		1250	110	12100	28300

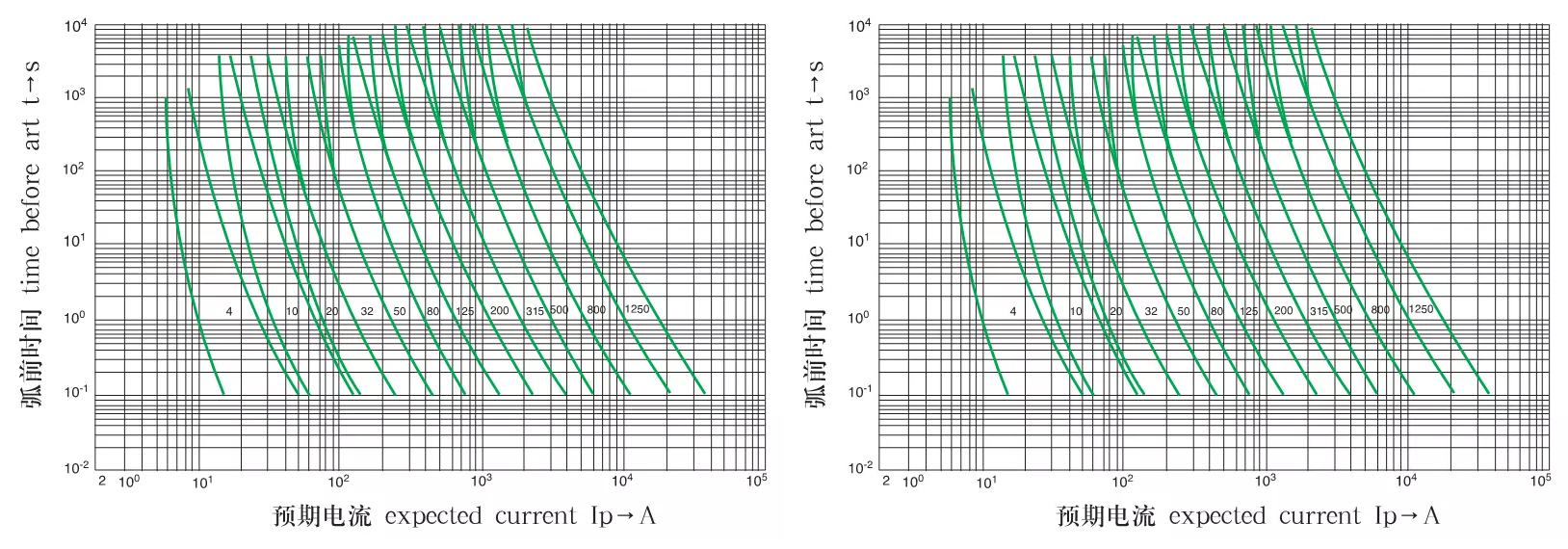

Time Current Curve （Size code 4,4a）

Time limit and test current

Rated current(A)	Time limit(s)	Test current(A)
Rated current(A)	Time limit(s)	Inf	If
In≤4	1	1.5In	2.1In
4≤In<16	1	1.5In	1.9In
16≤In≤63	1	1.25In	1.6ln
63<In≤160	2
160<In≤400	3
400<In	4

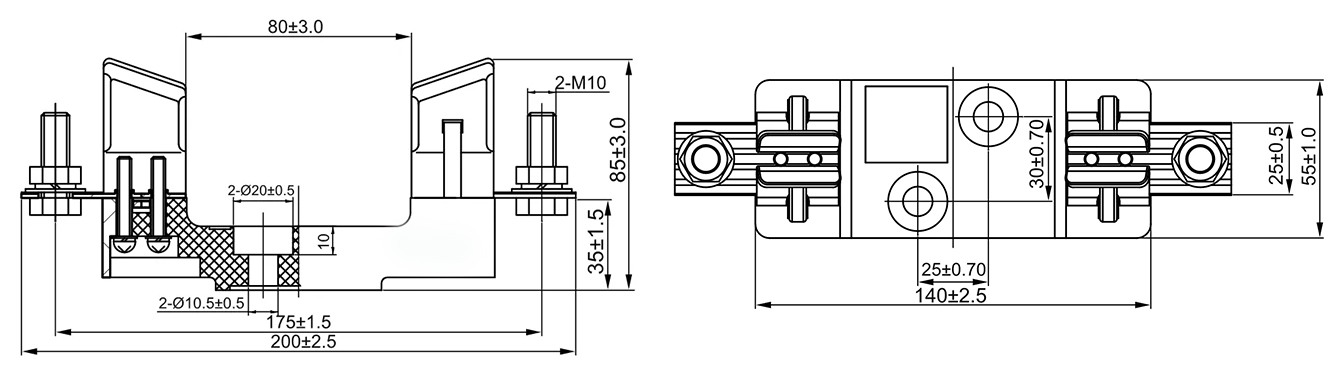

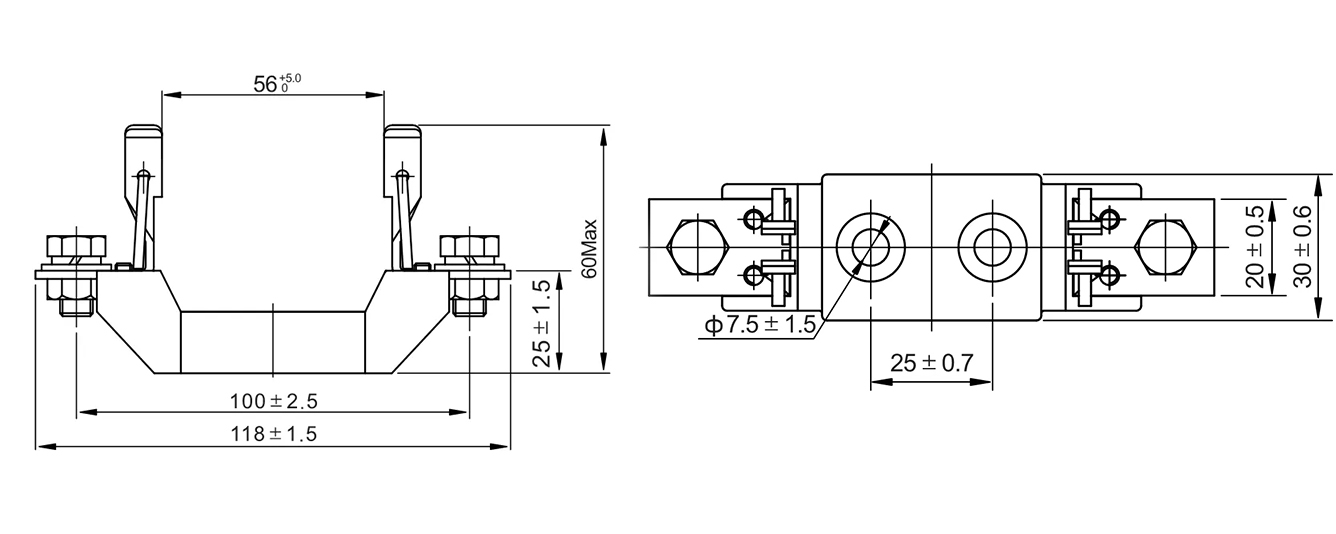

RT16/NH Fuse Holder

Fuse holder type	Fuse link type	Rated voltage(V)	Maximum voltage(V)	Rated current(A)	Accept power(W)	Screw Bolt	Torque (N.m)
Sist101	00	AC500V DC440V	1000VAC/DC	160A	14.5	M8x20	11N.m
Sist201	1	AC500V DC440V	1000VAC/DC	250A	32	M10×30	21N.m

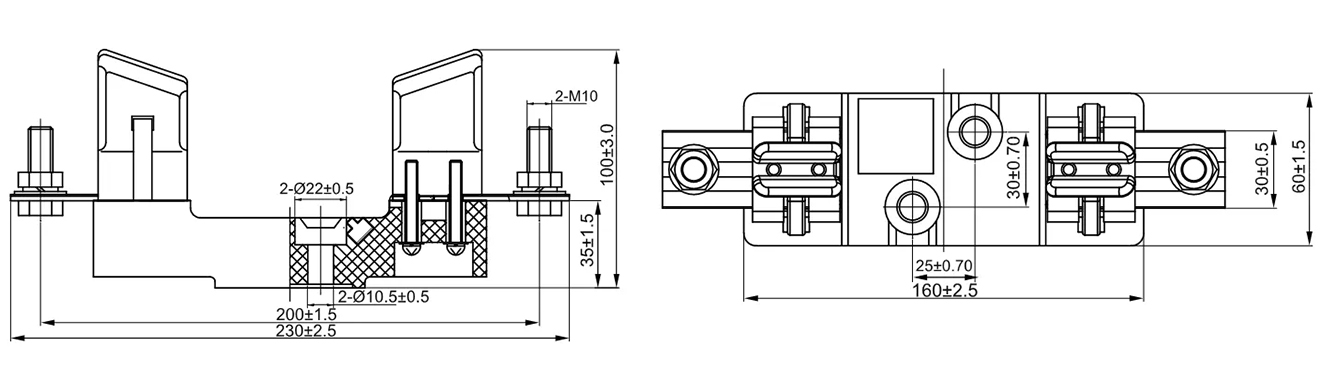

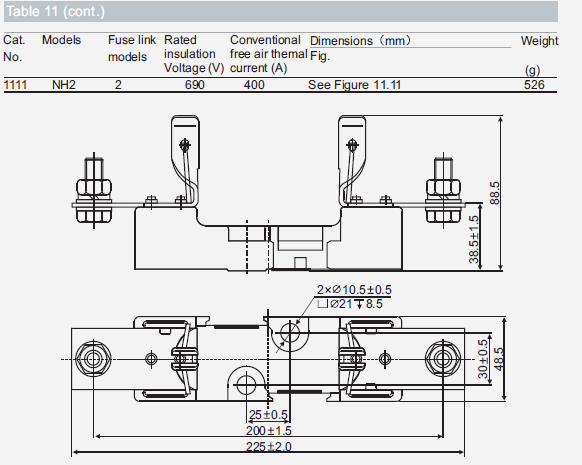

Sist401	2	AC500V DC440V	1000VAC/DC	400A	48	M10×35	21N.m

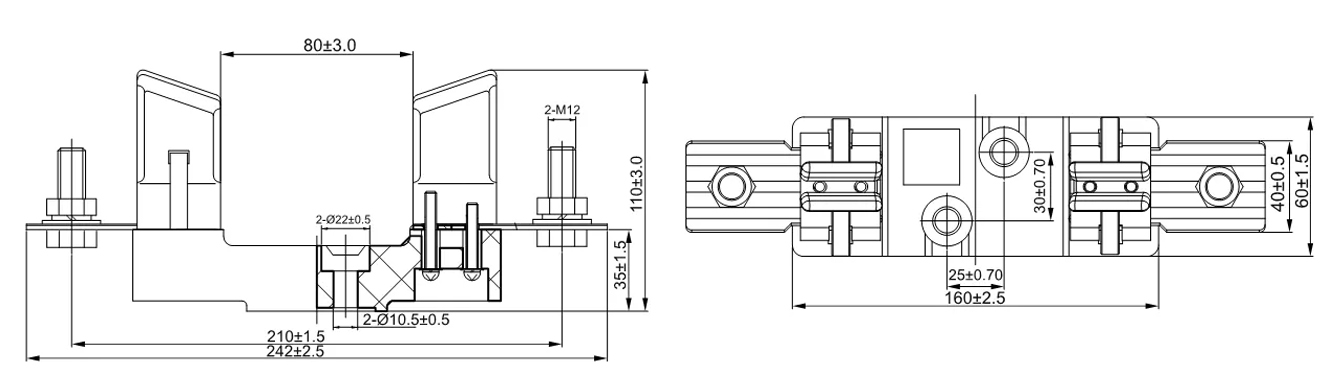

Sist601	3	AC500V DC440V	1000VAC/DC	630A	60	M12x40	38N.m
