Applications
Supporters for bolting fuses in electric lines are capable of working under the heat caused by rated current and prospective short-circuit impacting current up to 100kA.
Rated insulation voltage up to 1000V, Working frequency 50Hz AC, Rated current up to 630A, Compliant with Gb13539 and IEC60269.
Design Features

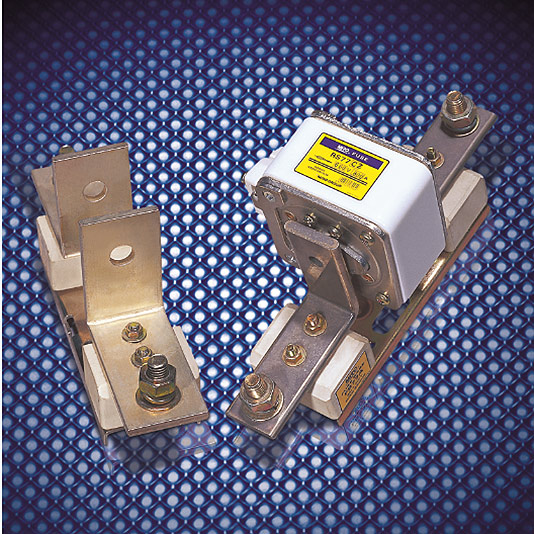

There are two kinds of structures for this type of fuse bases; One is made up with fuse carrier, The bolting fuse link is
installed to the carrier, then it is inserted to static contacts of the supporter / base. There is no carrier for the other structure,
where the bolting fuse is directly installed to the static contacts of the supporter / base. The company can also produce other non-standard bases at the customers`requirements.
Basic Data
The models, rated insulate voltage, conventional free air thermal current, and dimensions are shown in Figures 12.1~12.6 and Table 12.
Table 12
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
||
| Fig. | A1 | B1 | ||||||
| 1204 | FB77 | RS77 RS77B RS77C RS84 |
660 | 630 | See figure 12.2 | 221 | 40 | 985 |
| 1205 | FB77A | RS77A RS82 RS79A RS83 |
660 | 630 | See figure 12.2 | 214 | 30 | 905 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
| Fig. | ||||||

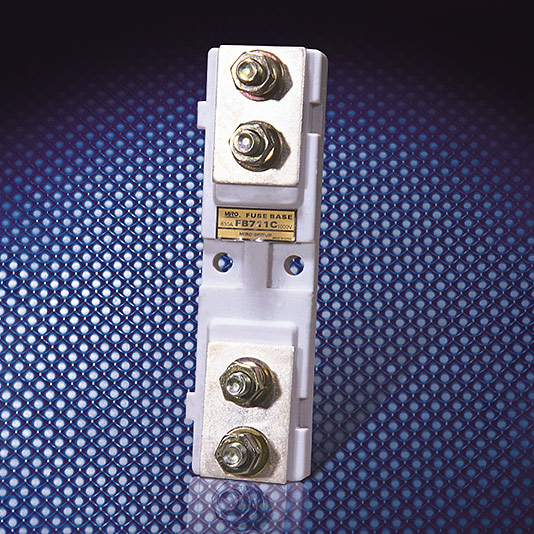

| 1206 | FB711C | RGS30A RGS30B RS711B RS711C NGT00 |
800 | 200 | See Figure 12.3 | 182 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
| Fig. | ||||||

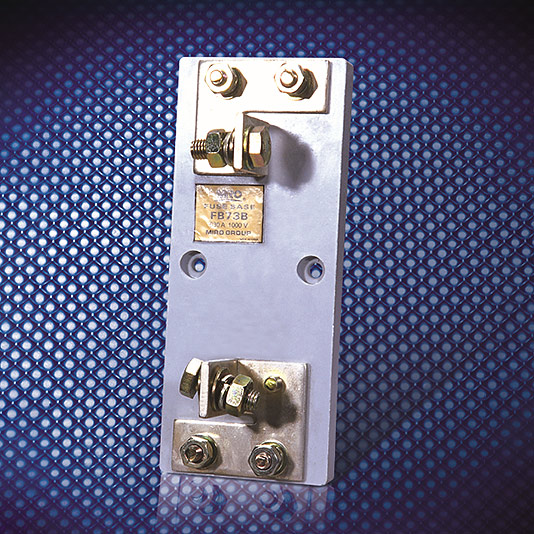

| 1207 | FB73B | NGT1~3 RS73BRS75A RS75B | 1000 | 630 | See Figure 12.4 | 826 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
| Fig. | ||||||

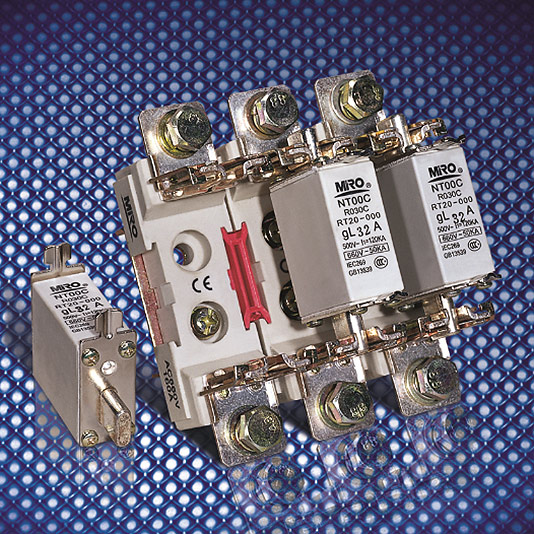

| 1209 | NT00S-3J | 690 | 160 | See Figure 12.6 | 845 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
| Fig. | ||||||
| 1210 | FB32A | RO32A | 1140 | 250 | See Figure 12.7 | 496 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
| Fig. | ||||||

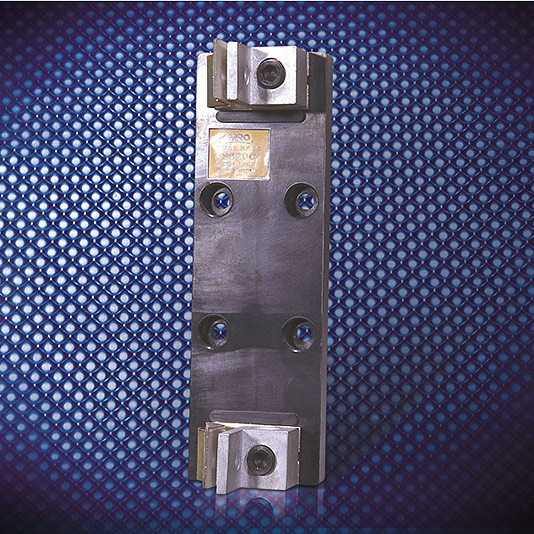

| 1211 | FB34A | RO34A | 1140 | 630 | See Figure 12.8 | 856 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
||||||||||
| Fig. | A1 | A2 | A3 | B1 | B2 | C1 | C2 | H1 | H2 | Ød | ||||||
| 1213 | BFF63A3 | RG2 RGS2 | 690 | 63 | See Figure 12.9 | 6.5 | 106 | 134 | 12.5 | 38 | 17.5 | 23 | 60 | 75 | 5.5 | 249 |
| 1214 | BFF125A4 | RG7 | 690 | 125 | See Figure 12.9 | 25 | 135 | 165 | 22.5 | 50 | 20.5 | 28 | 78.5 | 98 | 6.5 | 634 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
||||||||||
| Fig. | A1 | A2 | A3 | A4 | A5 | B1 | B2 | C2 | H | Ød | ||||||
| 1213 | BFF63A3 | RG2 RGS2 | 690 | 63 | See Figure 12.10 | 6.5 | 106 | 13.5 | 80 | 40 | 12.5 | 38 | 23 | 163 | 5.5 | 298 |
| 1214 | BFF125A4 | RG7 | 690 | 125 | See Figure 12.10 | 25 | 135 | 15 | 94 | 47 | 22.5 | 50 | 28 | 185 | 6.5 | 691 |
Table 12(Cont.)
| Cat. NO. |
Models | Fuse link Size |
Rated insulation Voltage(V) |
Conventional free air themal current(A) |
Dimensions(mm) | Weight (g) |
|||||||
| Fig. | A1 | A2 | A3 | B1 | B2 | H | Ød | ||||||

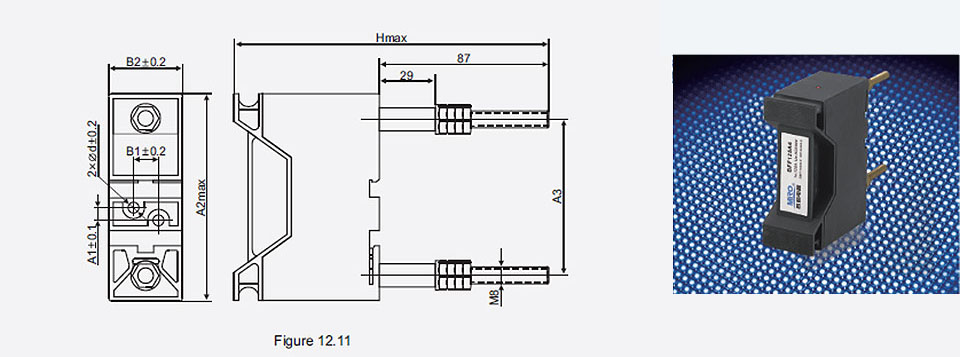

| 1217 | BFF63A3 | RG2 RGS2 | 690 | 63 | See Figure 12.11 | 6.5 | 106 | 80 | 12.5 | 38 | 163 | 5.5 | 359 |
| 1218 | BFF125A4 | RG7 | 690 | 125 | See Figure 12.11 | 25 | 135 | 94 | 22.5 | 50 | 185 | 6.5 | 752 |
