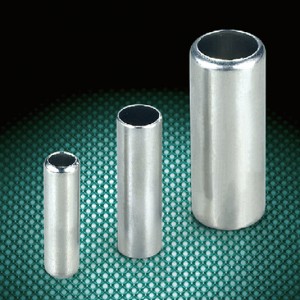

Null line fuse

Short Description:

This series of Null line fuse can be equipped with RT18 series of fuse holders/bases and DR series of fuse disconnecting
switches for usage, e.g. it can be combined freely into RT18-32 3P+N structures, etc. or combined as customer`s requirements.

Send email to us

Product Detail

Product Tags

Applications

Protection against overloads and circuit short in electric lines.Rated voltage up to 80V DC or 50Hz 130V AC, Rated current up to 800A.

Design Features

This series of Null line fuse can be equipped with RT18 series of fuse holders/bases and DR series of fuse disconnecting switches for usage, e.g. it can be combined freely into RT18-32 3P+N structures, etc. or combined as customer`s requirements.

Basic Data

The models, dimensions, ratings are shown in Figures 14.2-14.7 and Tables 14.

Table 14

Cat. No.	Models	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)		Weight (g)
Cat. No.	Models	Rated Insulation voltage(V)	Conventional free air themal current( A)	Fig.	ØD×L	Weight (g)

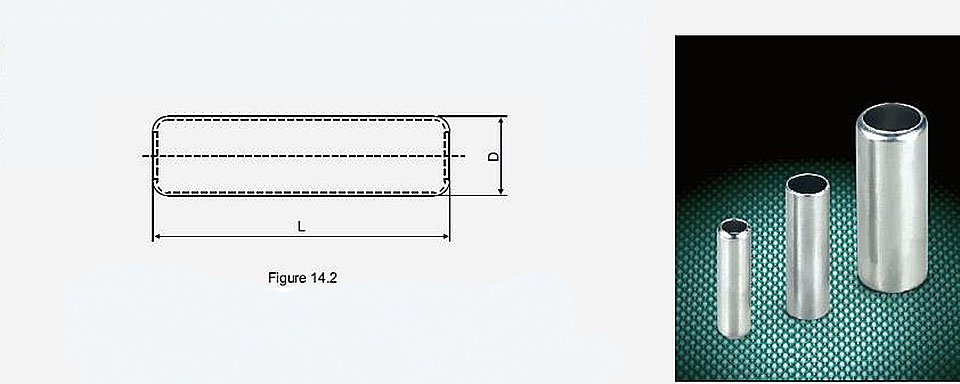

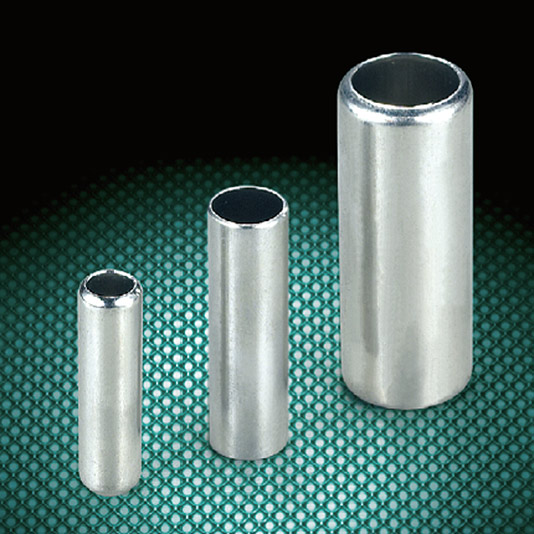

1402	R014N	500/690	25	14.2	8.5×31.5	3.3
1403	R015N	500/690	32	14.2	10×38	4.73
1404	R016N	500/690	63	14.2	14×51	9.5
1405	R017N	500/690	125	14.2	22×58	21.3

Table 14(Cont.)

Cat. No.	Models	Size of applicable fuse base	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)	Weight (g)
					Fig.

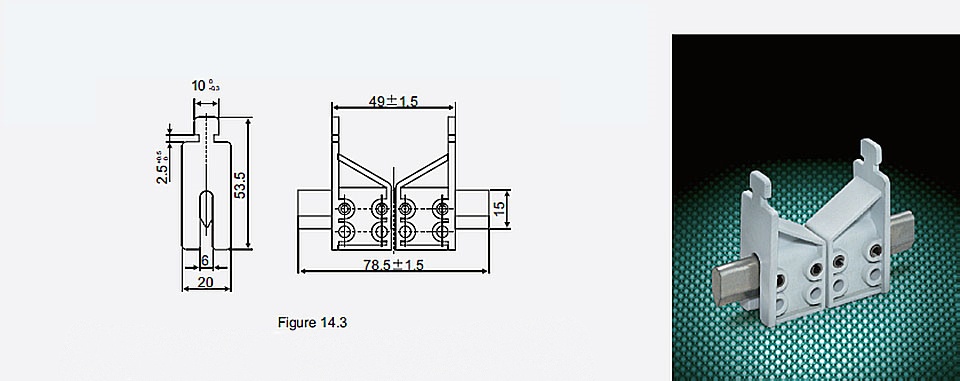

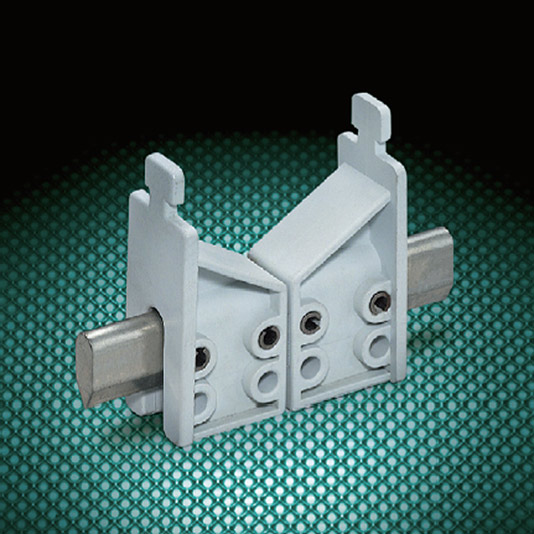

1406	N-00	00	690	160	See Figure 14.3	84

Table 14(Cont.)

Cat. No.	Models	Size of applicable fuse base	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)	Weight (g)
					Fig.

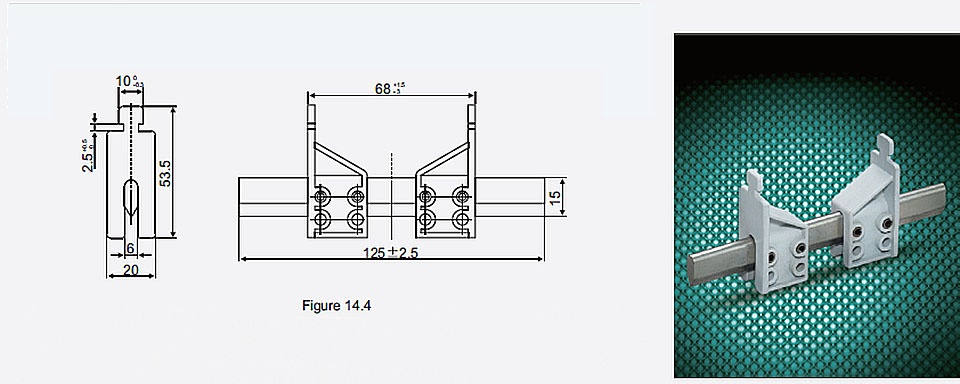

1407	N-0	0	690	160	See Figure 14.4	88

Table 14(Cont.)

Cat. No.	Models	Size of applicable fuse base	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)	Weight (g)
					Fig.

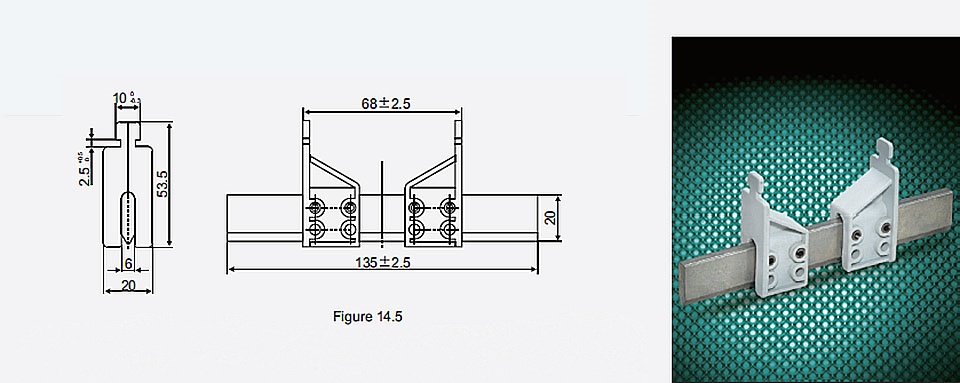

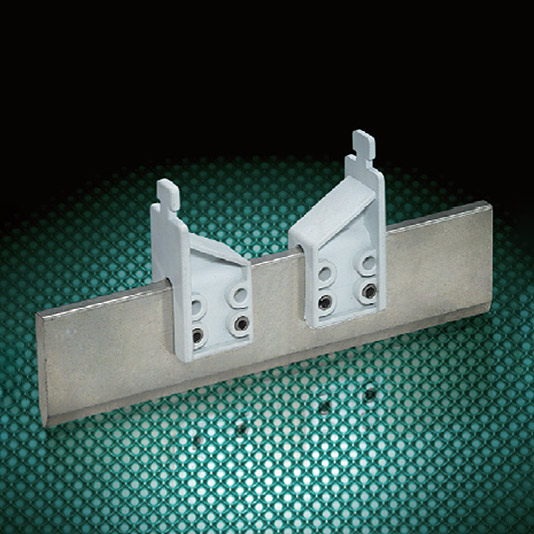

1408	N-1	1	690	250	See Figure 14.5	148

Table 14(Cont.)

Cat. No.	Models	Size of applicable fuse base	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)	Weight (g)
					Fig.

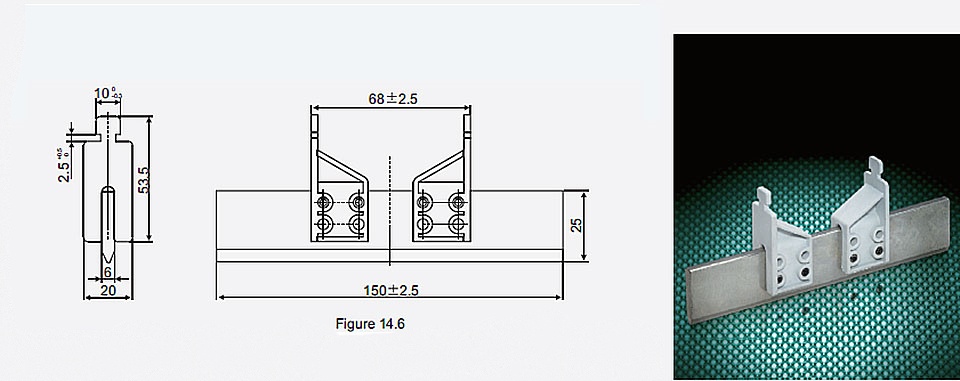

1409	N-2	2	690	400	See Figure 14.6	241

Cat. No.	Models	Size of applicable fuse base	Rated Insulation voltage(V)	Conventional free air themal current( A)	Dimensions/size(mm)	Weight (g)
					Fig.
1410	N-3	3	690	630	See Figure 14.7	288
