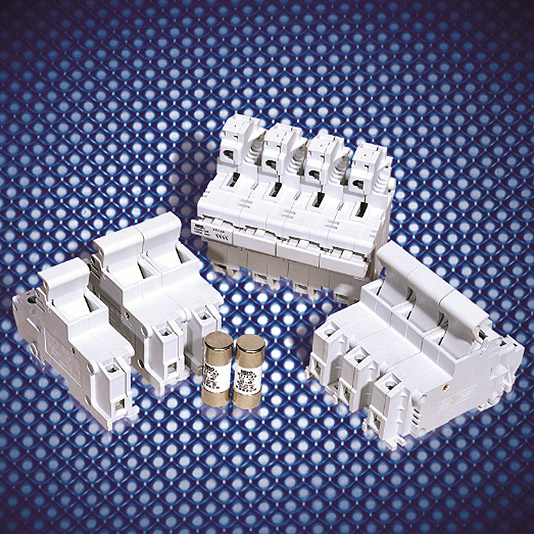

Cylindrical Fuse Holders

Short Description:

After the plastic-injected case is equipped with contacts and fuse links, the bases are formed by welding or riveting both capable of being multi-phase structured. FB15C, FB16-3J, FB19C-3J, Rt19 are open-structure, and others are semiconcealed structure. There are five fuses sizes available to choose from for the same fuse base of RT18N, RT18B and RT18C, There are two sets of in-out lines for RT18N. One is
installed with fuse links fuse links of the according size. The other is a permanent open contacts with double breaking points. The whole base unit can cut the power. Rt18 bases are all DIN rail installed, among which the RT18L is equipped with safety lock against wrong operation in the breaking state.

Send email to us

Product Detail

Product Tags

Applications

These fuse holders are supporters for fuses with size up to 22 58mm, Then are capable of working under heat caused by lt can also function as a fuse disconnecting switch by multi-phase combination. There are two in/out lines at the RT18N fuse base, providing a power cut function. The RT18L type has a safety lock the fuse carrier when disconnected to avoid wrong operation, it can also be equipped with an indicator, which goes on when the fuse link breaks. Rated insulate voltage up to 690V, Working frequency 50Hz AC,Conventional free air thermal current up to 125A; Compliant with GB13539.1 GB/T13539.2 and IEC60269-1 IEC60269-2.

Design Features

After the plastic-injected case is equipped with contacts and fuse links, the bases are formed by welding or riveting both capable of being multi-phase structured. FB15C, FB16-3J, FB19C-3J, Rt19 are open-structure, and others are semiconcealed structure. There are five fuses sizes available to choose from for the same fuse base of RT18N, RT18B and RT18C, There are two sets of in-out lines for RT18N. One is installed with fuse links fuse links of the according size. The other is a permanent open contacts with double breaking points. The whole base unit can cut the power. Rt18 bases are all DIN rail installed, among which the RT18L is equipped with safety lock against wrong operation in the breaking state.

Basic Data

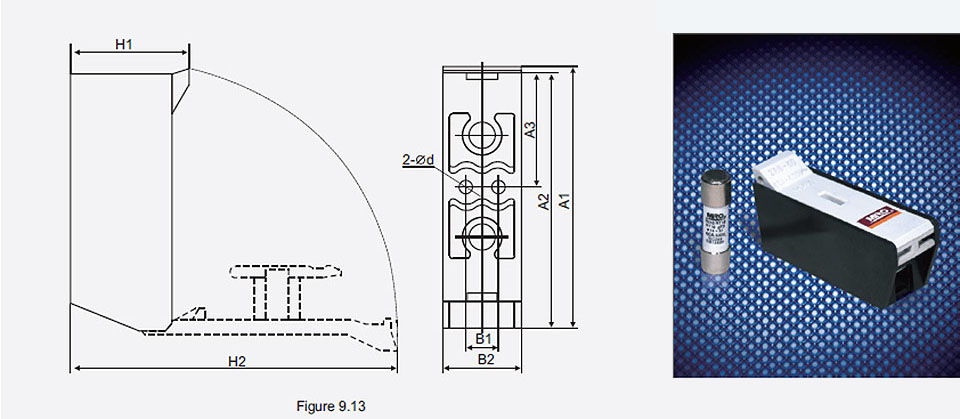

The models, Rated insulate voltage, rated current, and dimensions are shown in figures 9.1~9.14 and Table 9 Width of N-phase combination in Bn=nB .

Table 9

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions(mm)	Weight (g)
					Fig.

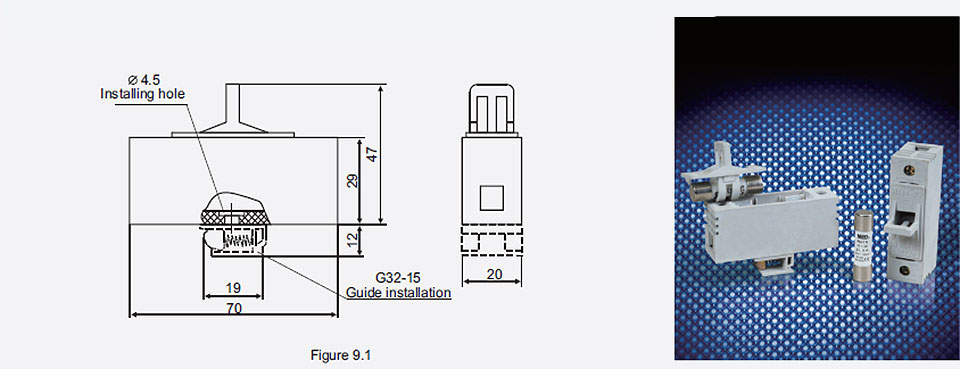

0901	RT14-20	10×38	690	20	Bolt installing hole Ø4.5 See Figure 9.1	38
0902	RT14G-20	10×38	690	20	G32-15 rall installation See Figure 9.1	44

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)						Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A1	B	H1	H2	Ød	Weight (g)

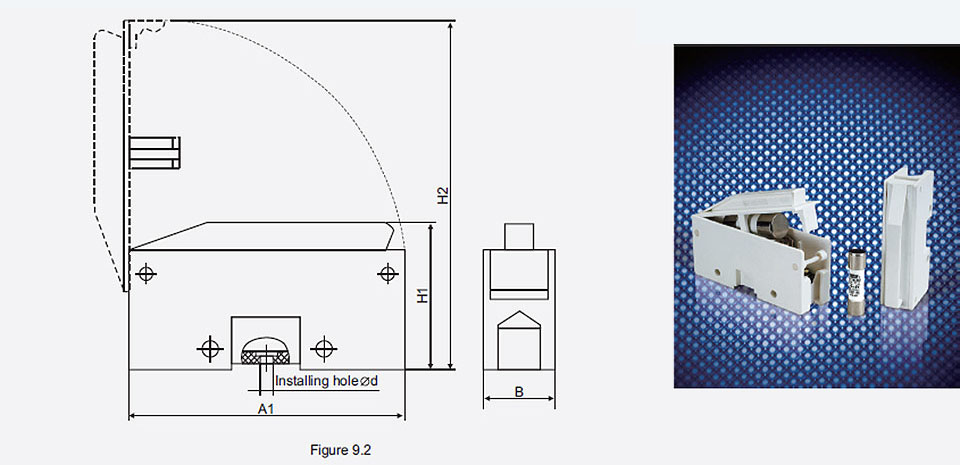

0903	RT14-32	14×51	690	32	9.2	105	26.5	57	135	5.5	148
0904	RT14-63	22×58	690	63	9.2	125	35	66	158	5.5	241

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)						Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A	B	H1	H2	Ød	Weight (g)

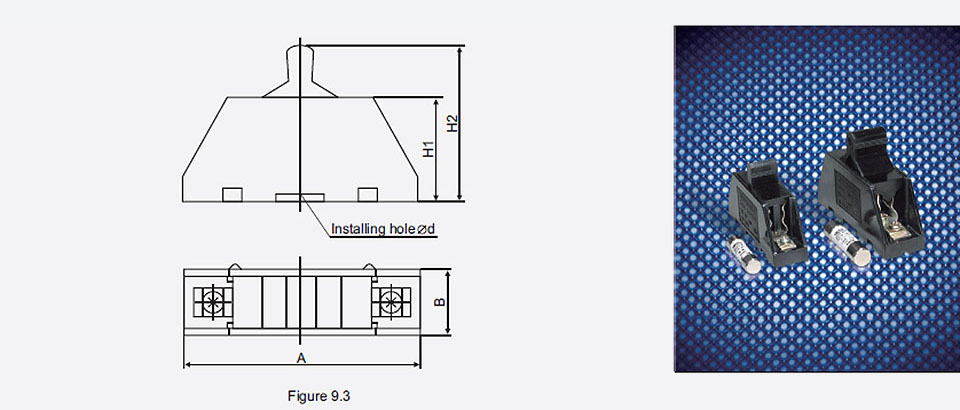

0905	RT19-16	8.5×31.5	690	16	9.3	69	18.5	28.5	41.5	5	34
0906	RT19-25	10×38	690	25	9.3	80	23	35	53	6.5	57

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)					Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A	B	H1	Ød	Weight (g)

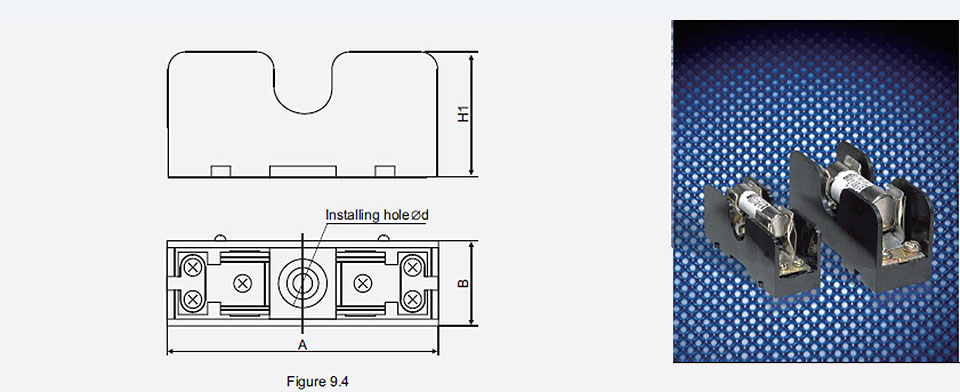

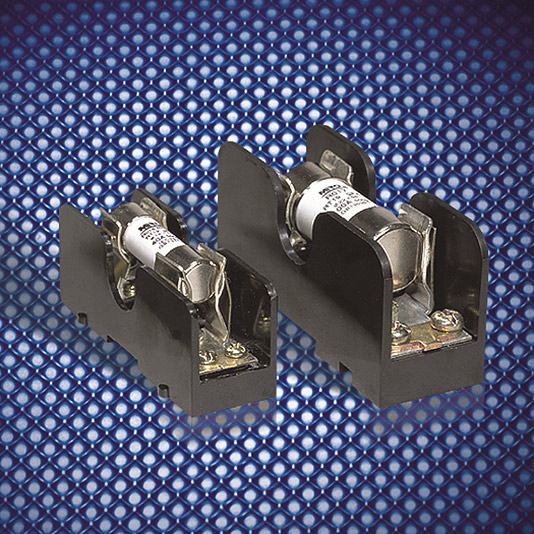

0907	RT19-40	14×51	690	40	9.4	91	28.5	40	5.5	78
0908	RT19-100	22×58	690	100	9.4	108	36	50	6.5	157

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)						Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A1	A2	B	H1	H2	Weight (g)

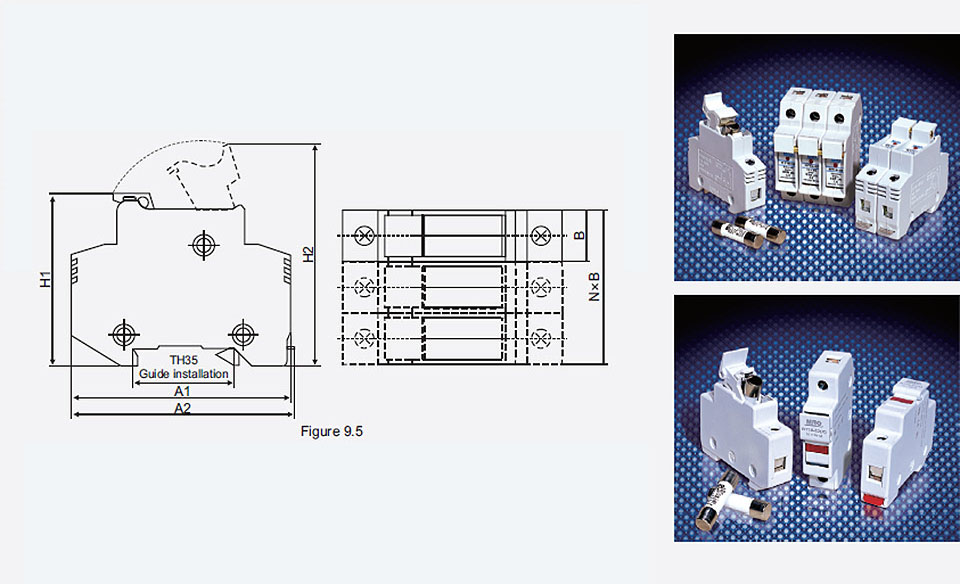

0909	RT18-32(X)	10×38	690	32	9.5	79	81	17.5	61	80	59
0910	RT18B-10	8.5×23	690	10	9.5	80	82	18	60	78	59
0911	RT18B-16	10×25.8	690	16	9.5	80	82	18	60	78	59
0912	RT18B-20	8.5×31.5	690	20	9.5	80	82	18	60	78	59
0913	RT18B-25	10×31.5	690	25	9.5	80	82	18	60	78	59
0914	RT18B-32	10×38	690	32	9.5	80	82	18	60	78	59
0915	RT18C-32	10×38	690	32	9.5	77	78	18	62	81	56
0916	RT18M-32	10×38	690	32	9.5	78	81	18	60	80	56
0917	HG30-32	10×38	690	32	9.5	78	80	18	73	88	57
0918	RT18-63(X)	14×51	690	63	9.5	96	99	27	62.5	91	108

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions(mm)	Weight (g)
					Fig.

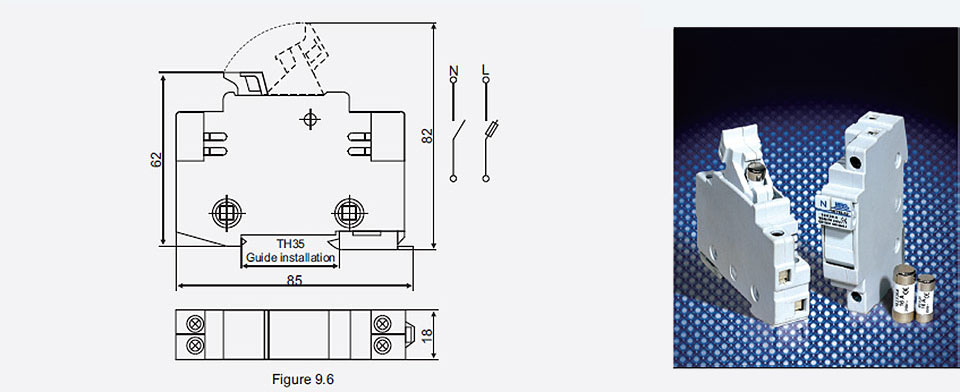

0919	RT18N-10	8.5×23	690	10	See Figure 9.6	70
0920	RT18N-16	10×25.8	690	16		62
0921	RT18N-20	8.5×31.5	690	20		63
0922	RT18N-25	10×31.5	690	25		62
0923	RT18N-32	10×38	690	32		62

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)						Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A1	A2	B	H1	H2	Weight (g)

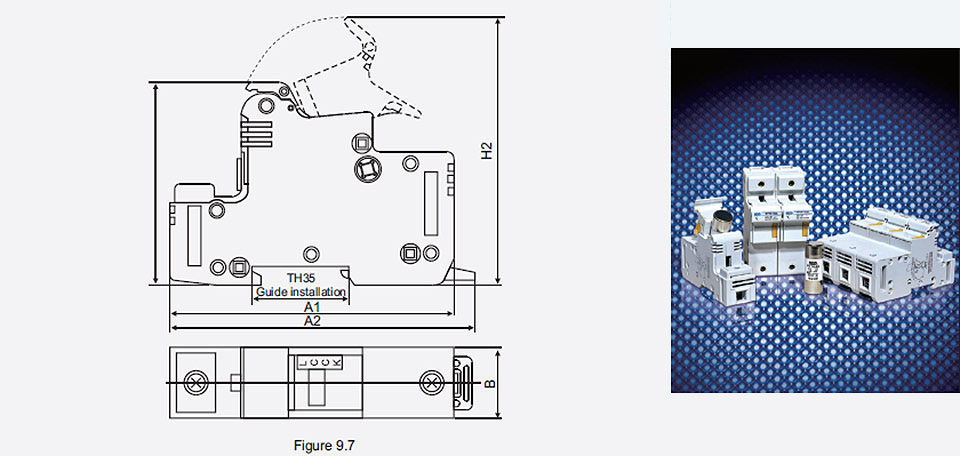

0924	RT18L-63	14×51	690	63	9.7	108	115	27	78	100	114
0925	RT18L-125	22×58	690	125	9.7	126	134	36	78	104	182

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions/size(mm)							Weight (g)
Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Fig.	A1	A2	B	H1	H2	Ød	Weight (g)

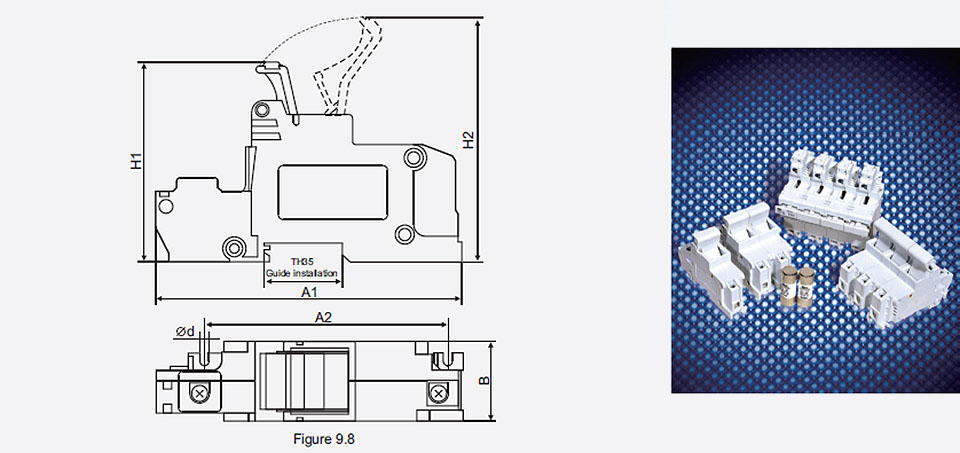

0926	HG30-63	14×51	690	63	9.8	107	80	27	80	102	4.5	167
0927	HG30-125	22×58	690	125	9.8	140	110	36	90	109	4.5	185

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions(mm)	Weight (g)
					Fig.

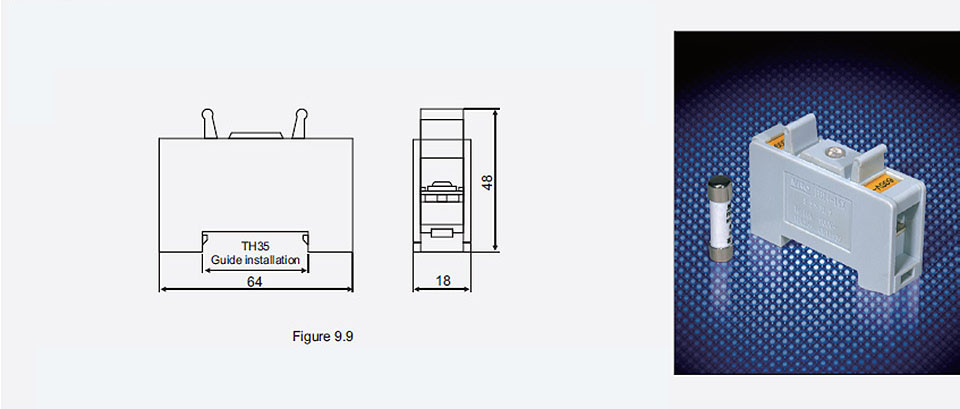

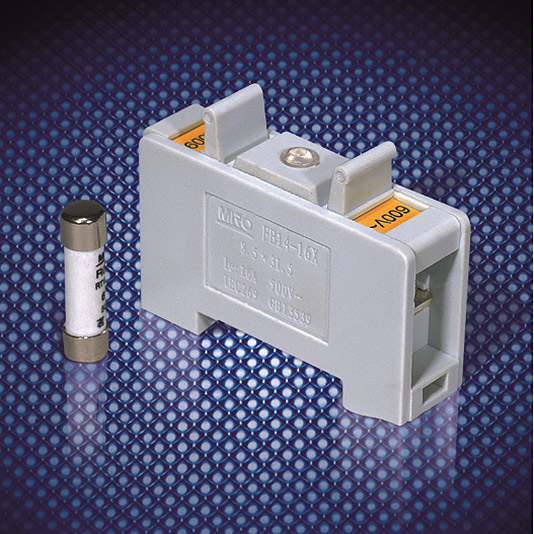

0928	FB14-16X	8.5×31.5	690	16	See Figure 9.9	38

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions(mm)	Weight (g)
					Fig.

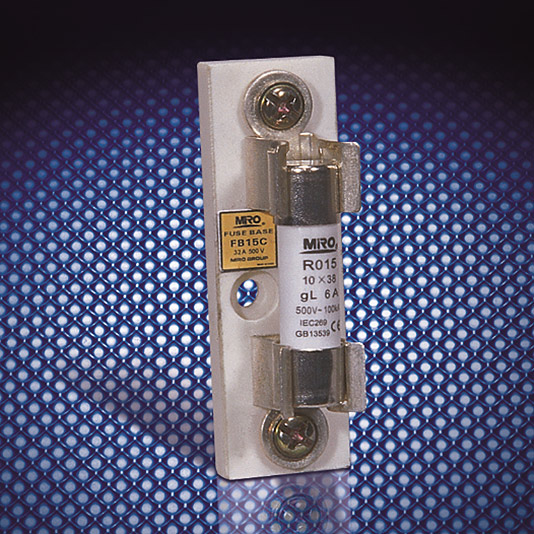

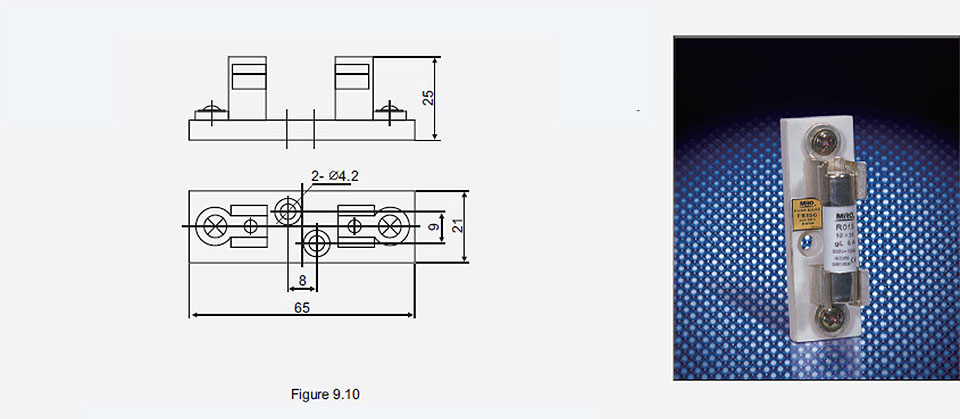

0929	FB15C	10×38	690	32	See Figure 9.10	25

Table 9(Cont.)

Cat. NO.	Models	Fuse Link Models	Rated Insulation Voltage(V)	Conventional Free Air Thermal Current(A)	Dimensions(mm)	Weight (g)
					Fig.

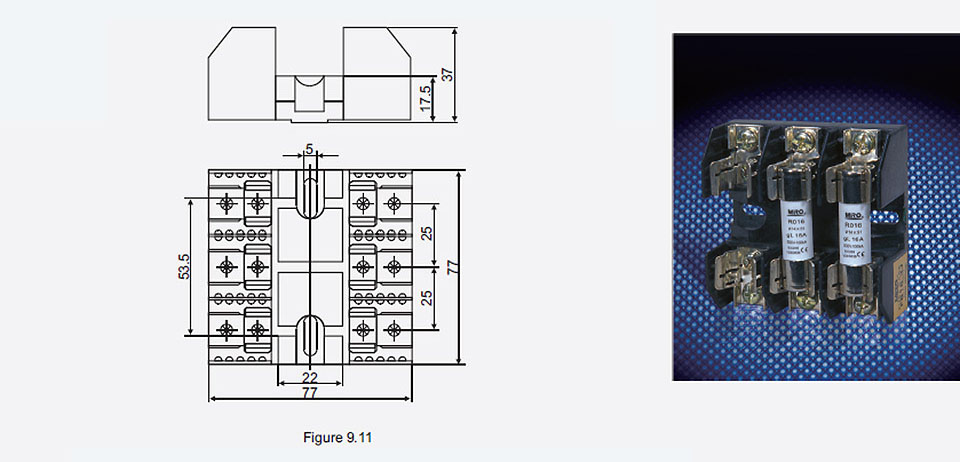

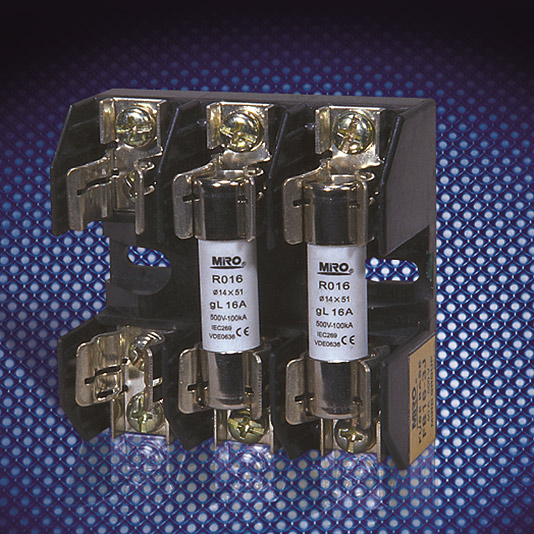

0930	FB16-3J	14×51	690	50	See Figure 9.11	140
