    • Bolt Connected Fuse Links

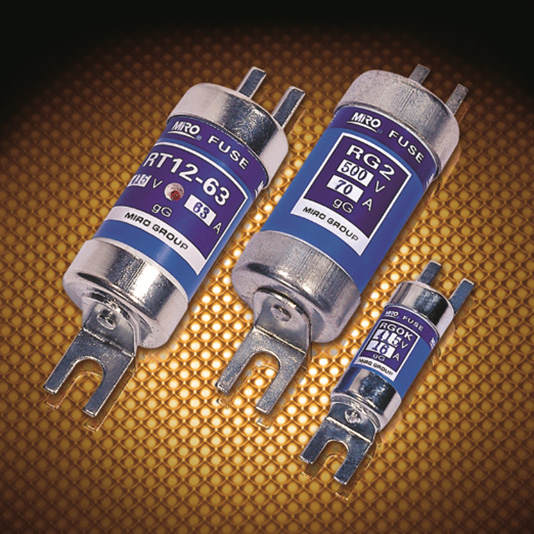

    Bolt Connected Fuse Links Featured Image
    • Bolt Connected Fuse Links
    • Bolt Connected Fuse Links
    • Bolt Connected Fuse Links
    • Bolt Connected Fuse Links
    • Bolt Connected Fuse Links
    • Bolt Connected Fuse Links

    Short Description:

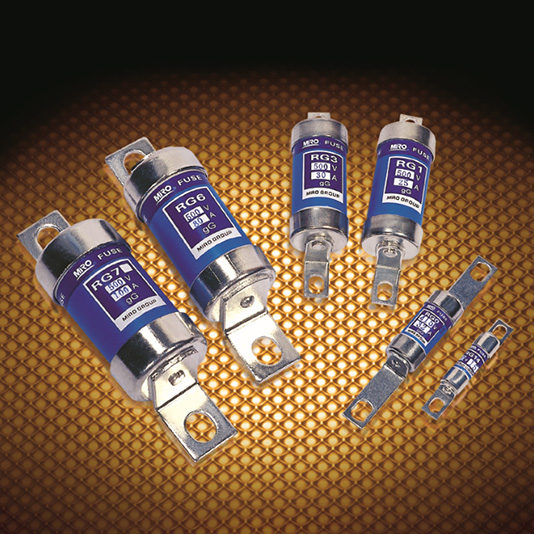

    Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Striker maybe attached to the fuse link to provide immediate activation of microswitch to give various signals or cut the circuit automatically.


    Product Detail

    Product Tags

    Applications

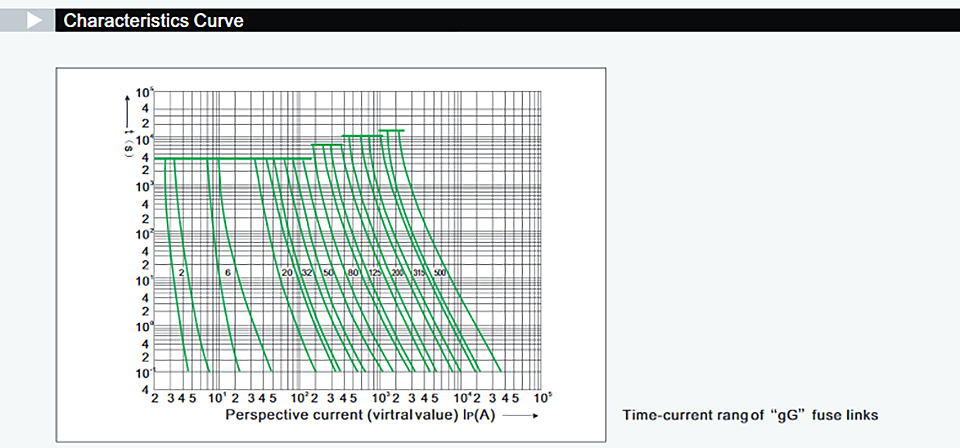

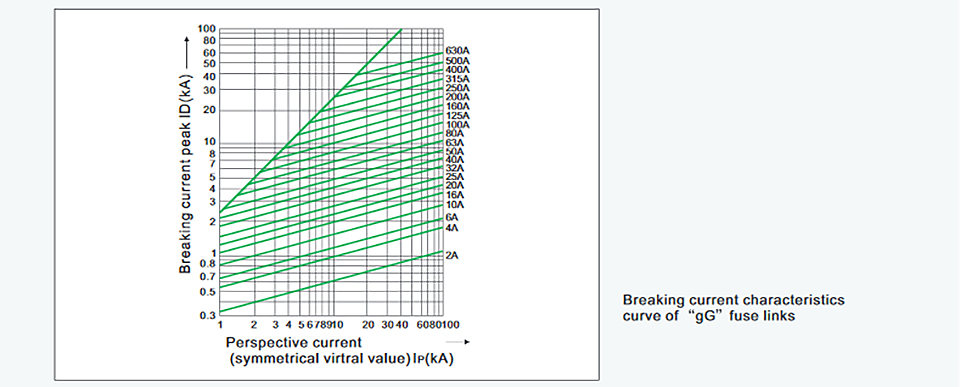

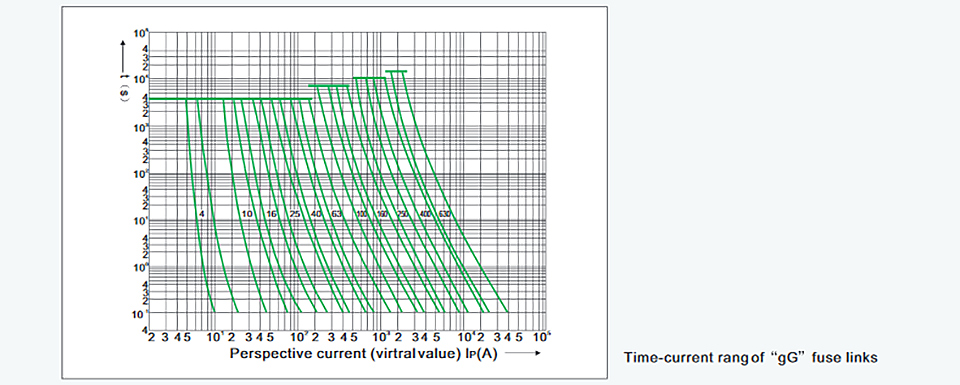

    Protection against overload and short-circuit in electric lines(type gG), also available for protection of semiconductor parts and equeipment against short-circuit (type aR) and protectionof motors (type aM).Rated voltage up to 1200V, Rated current up to 630A, Workingfrequency 50Hz AC, Rated breaking capacity up to 80KA. Compliant with Gb13539 and IEC60269.

    Design Features

    Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Striker maybe attached to the fuse link to provide immediate activation of microswitch to give various signals or cut the circuit automatically.

    Basic Data

    The models, dimensions, ratings are shown in Figures 6.1~6.11 and Tables 6.

    Table 6

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F H Ød
    0501 RG0K RGS0K NIT 415 1~32 6.1 1~32 45 55 13.5 11 0.8 14.5 5 14.4
    0502 RG2 RGS2 TIS RT12-63 500 40~100 6.1 40~100 75 88 25.5 13 1.2 27 6.5 73.8

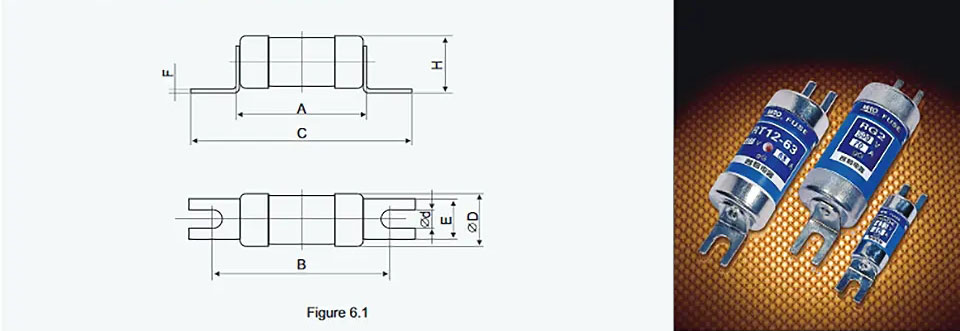

    Bolt Connected Fuse Links01

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight
    (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F H Ød
    0503 RG1 RGS1 TIA 500 4~35 6.2 54 73 85 22 9.5 1.5 25 5.5×7.5 55
    0504 RG4 RGS4 GSG 690/800 10~100 6.2 49.5 61 77 16.5 12.5 2 18 6.5×9 32
    0505 RG6 RGS6 GSA 500 80 6.2 68 94 113 31 19 2 33 9×11.5 146
    0506 RG7 TCP 500 100 6.2 68 94 113 34 19 2 35 9×11.5 228
    0507 RG11 RGS11 GR2L  GSB 250 16~75 6.2 27.5 42 56 16.5 12.5 2 17.5 6.5×9 25
    0508 RG12 RGS12 GR2L  GSB 250 75~175 6.2 31.5 58 80 26 19 3 27 9×11.5 79.5
    0509 RG14 RGS14 GSB 500 5~20 6.2 31 37 46 8.5 7 0.8 9.5 4.5×6 6
    0510 RG14B RGS14B GSB 500 5~20 6.2 54 64 73 8.5 7 0.8 9.5 4.5×6 8.5
    0511 RG15 RGS15 GR2L  GSB 250 200 6.2 34 60 88 30 25 3 36 11×13 120
    0512 RG17 RGS17 GSB 500 40~100 6.2 51 78 96 22.2 20.5 2 24 9×12 62.3
    0513 RG18 RGS18 CR6L 600 75~150 6.2 40 70 95 30 25 3.2 33 11×13 147
    0514 RG19 RGS19 CR6L 600 175~325 6.2 53 82 107 37 30 4 42 11×13 219
    0515 RG0H AAO 500 2~32 6.2 34 72 84 13.5 9.4 1.2 15 5.5×7.8 18
    0516 RG4AD RGS4AD 250GH 250 32~160 6.2 29 56 77 23.8 20 3 25.5 9×14 39
    0517 RG4A RGS4A 660GH 660 125~200 6.2 50 77 98 23.8 20 3 25.5 9×14 53
    0518 RG4B RGS4B 660GH 660 225~315 6.2 50.5 82 108 31 25 3 34 10.5×16 75
    0519 RG4BH RGS4BH 1000 225~315 6.2 70 100 126 31 25 3 34 10.5×16 96
    0520 RG2-2 RGS2-2 500 32~63 6.2 50 90 105 25 19 2.5 28 9×11.5 82
    0521 RG38 RGS38 250 125~400 6.2 34 60 86 38 25 3 41 11×14 48
    0522 RG5-2 RGS5-2 1200 16~75 6.2 109 127 140 26 13 1.5 28 6.5×9 106

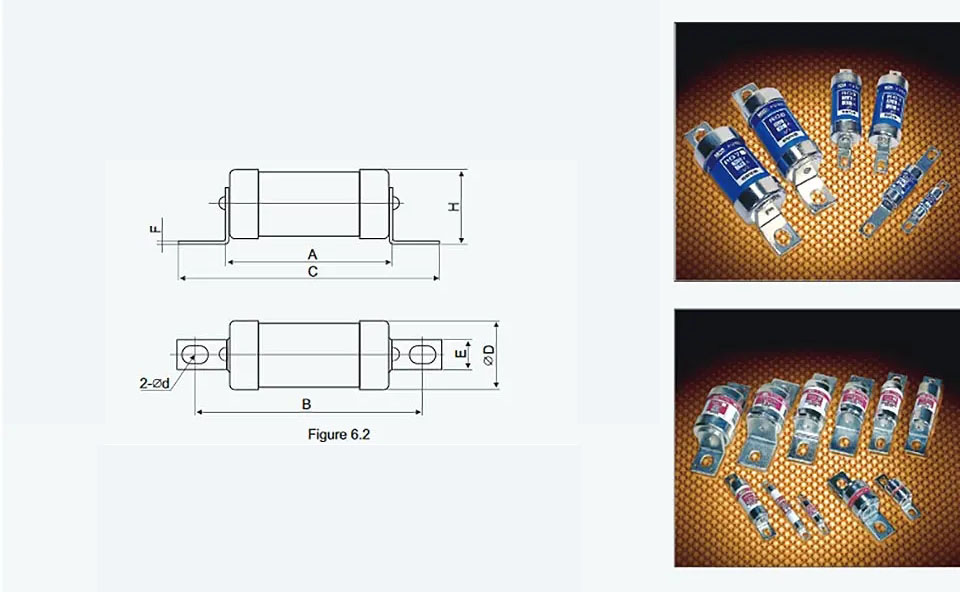

    Bolt Connected Fuse Links02

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A C ØD E F
    0523 RG0 RGS0 NS 415 1~32 6.3 32 59 13.5 11 0.8 15.2
    0524 RG0D RGS0D NS 415 40~63 6.3 39 67 17.5 15 1.2 24

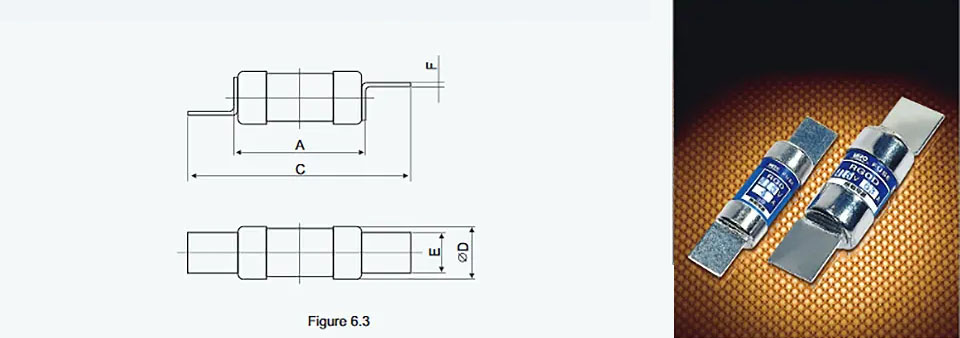

    Bolt Connected Fuse Links03

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight
    (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F G H Ød
    0525 RG4(Z) RGS4(Z) 690/1000 10~100 6.4 49.5 63 77 16.5 12.5 2 24 18 6.59 35
    0526 RGS7F(Z) 690/1000 125~250 6.4 50 80 104 34 25 3 40 38 10.5×7 280
    0527 RGS7(Z) 690/1000 125~300 6.4 55 81 110 38 25 3 44 41 11×14 295

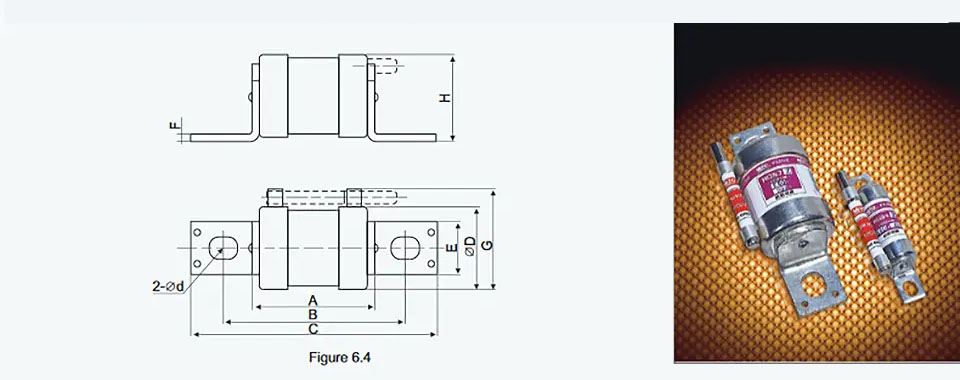

    Bolt Connected Fuse Links04

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight
    (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F H Ød
    0528 RG1K RGS1K 500 40~63 6.5 54 73 85 22 13 1.2 25 6.5 60
    0529 RG2-1 RGS2-1 PC63 500 32~63 6.5 51 80 98 25 19 2 28.5 9 81
    0530 RG5 RGS5 GSB 1200 6~63 6.5 110 121 138 22 13 1.5 27 6.5 91
    0531 RG5-1 RGS5-1 1200 16~75 6.5 110 124 140 25.5 13 1.3 28 6.5×9 98
    0532 RG5D RGS5D GSB 1200 32~63 6.5 110 124 138 26 13 1.5 27 6.5 107
    0533 RG13 RGS13 PC25 500 2~25 6.5 57 75 91 15 13 1.5 20.5 6.5 37
    0534 RG16 RGS16 GSB 500 25~40 6.5 56 78 95 14 13 1.5 17 6.5 29
    0535 RG7A RGS7A PC10D 500 110~150 6.5 55 88 115 38 24 3 40 10.5 178

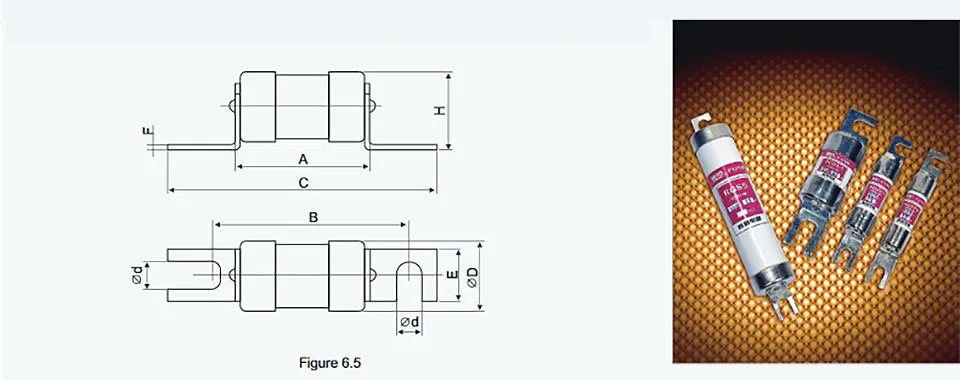

    Bolt Connected Fuse Links05

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight
    (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F Ød

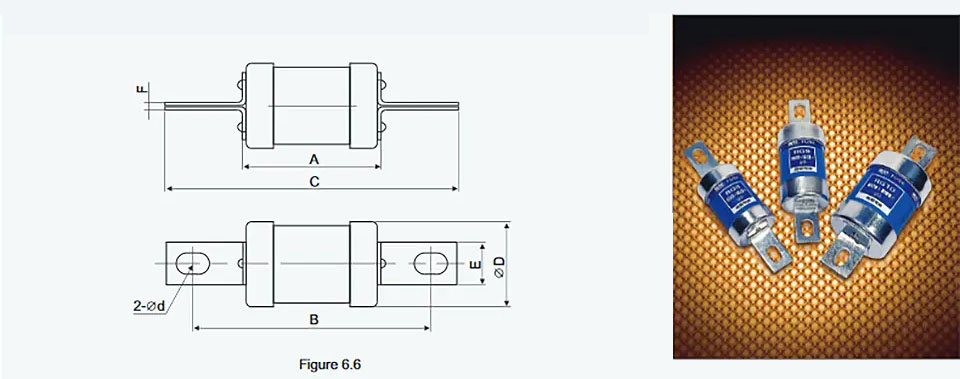

    0536 RG8 RGS8 TC 415/550 125~160 6.6 61 110 135 38 19 3 8.5×15 212
    0537 RG8B RGS8B 415/550 80~100 6.6 52 74 94 22 20 3 6×9 60.9
    0538 RG9 RGS9 RT15-200/B2 415/550 200 6.6 72 110 135 40 19 3 9.5×15 242
    0539 RG10 RGS10 RT15-200/B3 415/550 250~350 6.6 73 110 135 53 25 3 9×15 451
    0540 RG10B RGS10B TM 415/550 355~400 6.6 70 110 135 60 25 4 8.5×15 563
    Bolt Connected Fuse Links06

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight
    (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E F H Ød

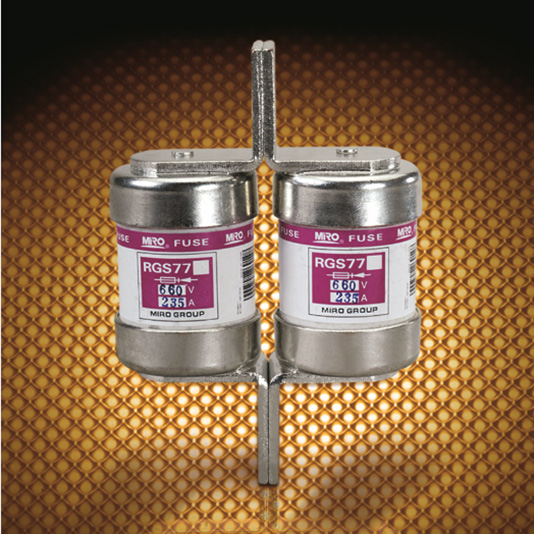

    0541 RG77 RGS77 GSG 690/1000 100~500 6.7 58 85 110 38 25 6 80 11×14 455
    0542 RG77YK RGS77YK 690/1000 100~500 6.7 58 110 137 38 25 6 80 10.5×22 495
    0543 RG77F RGS77F 600 100~350 6.7 50 80 104 34 25 6 76 10.5×17 335
    0544 RG19 RGS19 GR6L 600 350~500 6.7 43 97 122 36.5 30 8 83 11×13 219

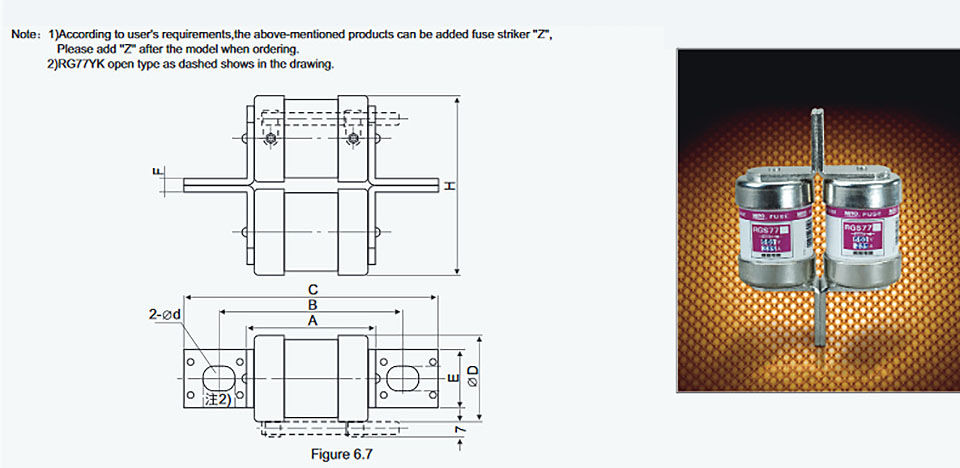

    Bolt Connected Fuse Links07

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig.

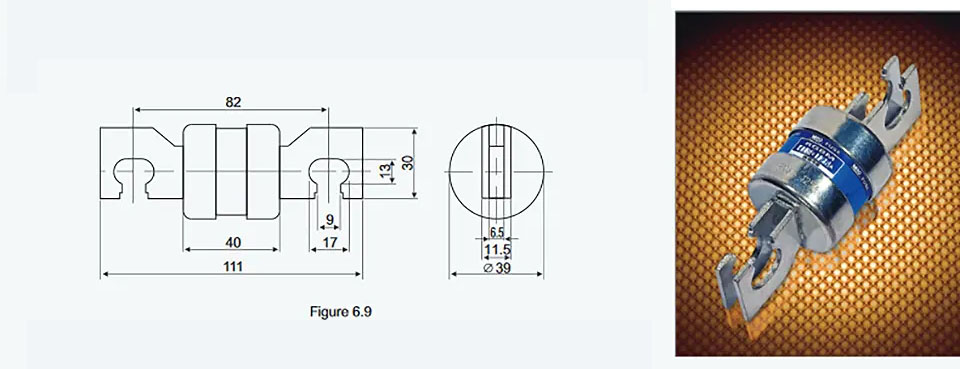

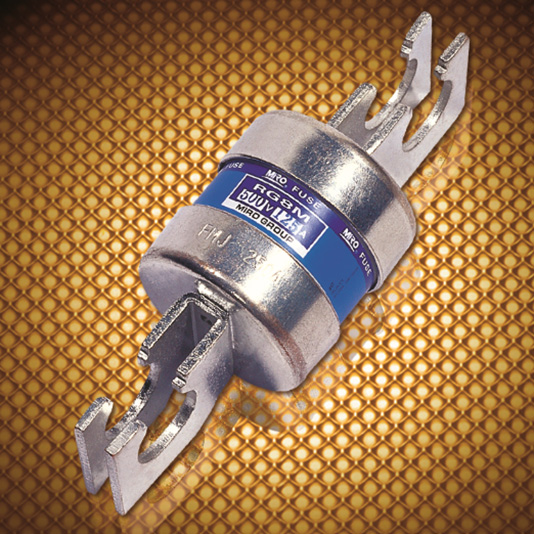

    0545 RG8M RGS8M 415/550 80~315 See Figure 6.9 507
    Bolt Connected Fuse Links08

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig. A B C ØD E

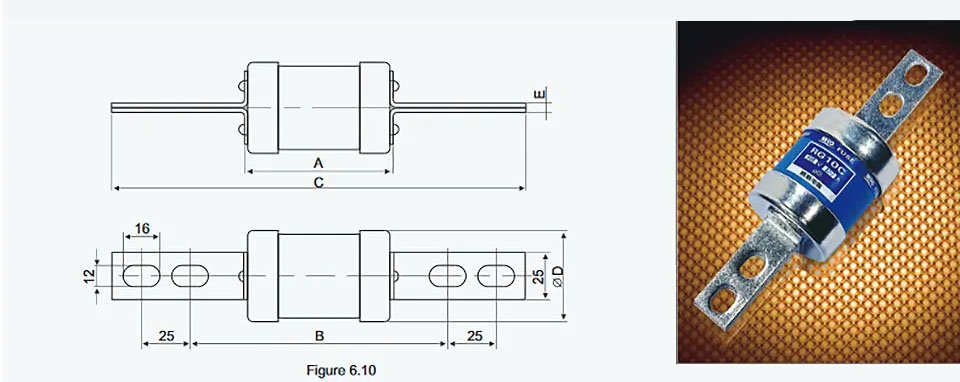

    0546 RG10C RGS10C 500/1000 355~400 6.10 80 133 210 60 6 840
    0547 RG10D RGS10D 500/1000 450~630 6.10 82 133 210 76 6 1350
    Bolt Connected Fuse Links09

    Table 6(Cont.)

    Cat.
    NO.    		 Models Rated voltage
    (V)    		 Rated current
    (A)    		 Dimensions/size(mm) Weight (g)
    MIRO Cross-reference
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Fig.

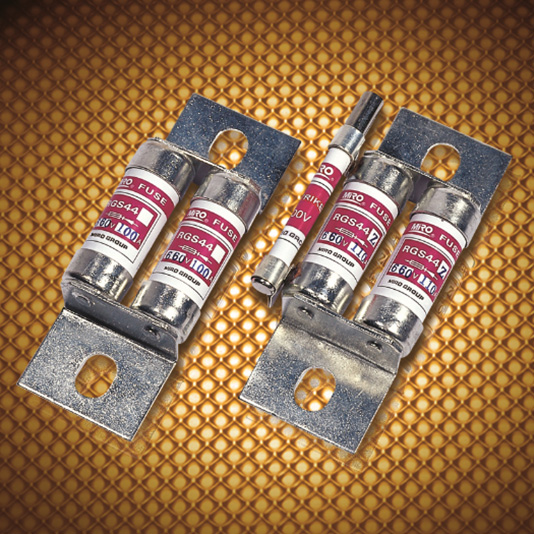

    0548 RG44(Z) RGS44(Z) GSG 690/1000 75~160 See Figure 6.11 78

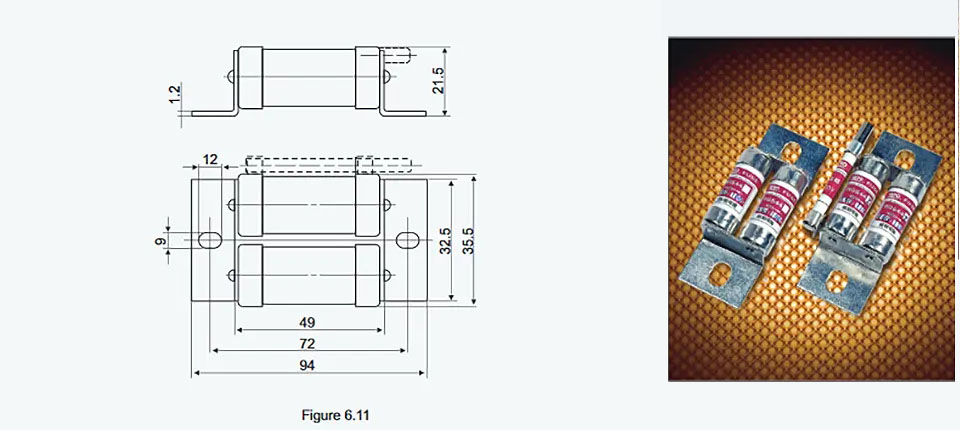

    Bolt Connected Fuse Links10
