    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection

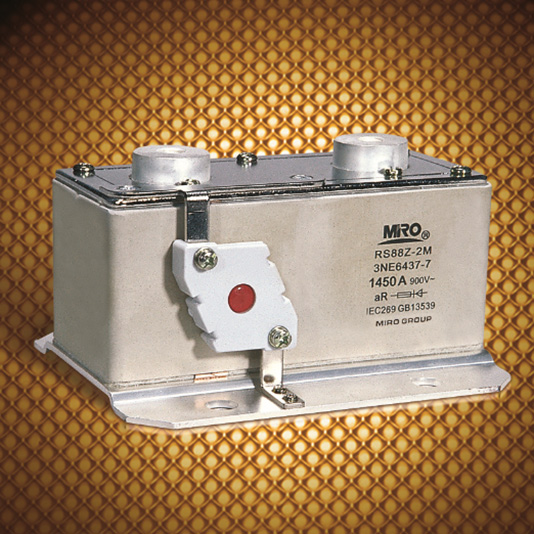

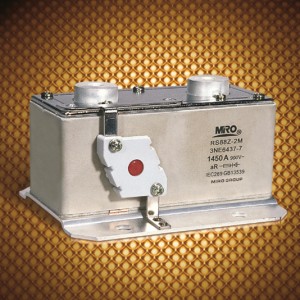

    Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection Featured Image

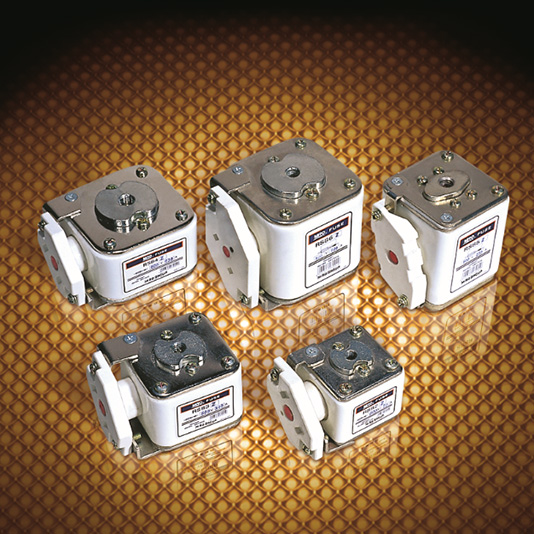

    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection

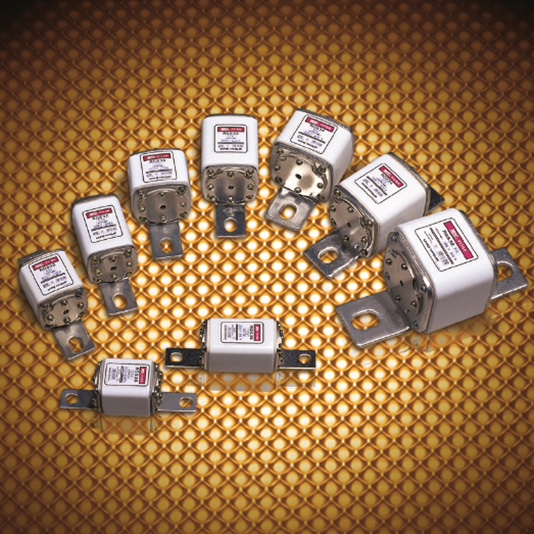

    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection

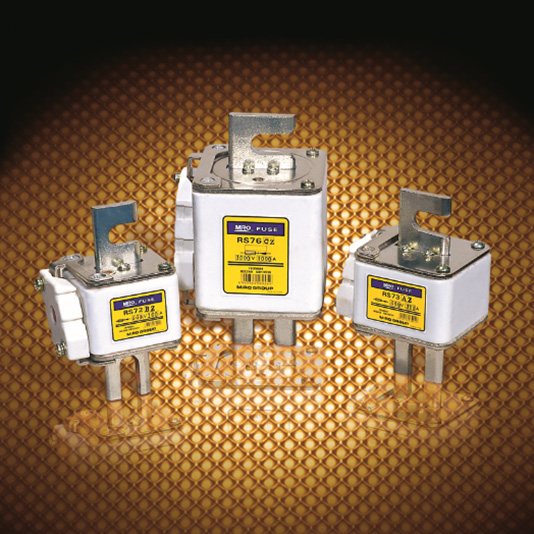

    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection
    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection
    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection
    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection
    • Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection

    Short Description:

    The variable cross-section fuse element made of pure silver sheets are sealed in the melting tube made of epoxy glass fibre which is heat resistant. The fuse tube is filled with chemically-treated high-purity quarts as arc-extinguishing medium,The two ends of the melting body are connected to the (knife) contacts by dot welding.


    Product Detail

    Product Tags

    Applications

    This series of fuses are mainly used in circuits of AC 50Hz, rated voltage of 2000V and rated current of 2500A, to protect the semiconductor components and the whole unit from circuit short (aR). The breaking capacity of the fuses is up to 100kA.

    The fuses are compliant with the IEC60269-1 / IEC60269-4 and GB13539.1 / GB/T13539.4.

    Design Features

    The variable cross-section fuse element made from pure silver sheets are sealed in the melting tube made of high-density porcelain; The fuse tube is filled with chemically treated high purity quarts as arc-extinguishing medium; The two ends of the melting body are connected to the (Knife) contactor by dot welding; Both knife contactors and board contacts are available;

    A striker / indicator may be installed to the fuse link, When the fuse link breaks, signals are sent out in the case of an indicator, or the switch is pushed to cut the circuit the case of a striker.

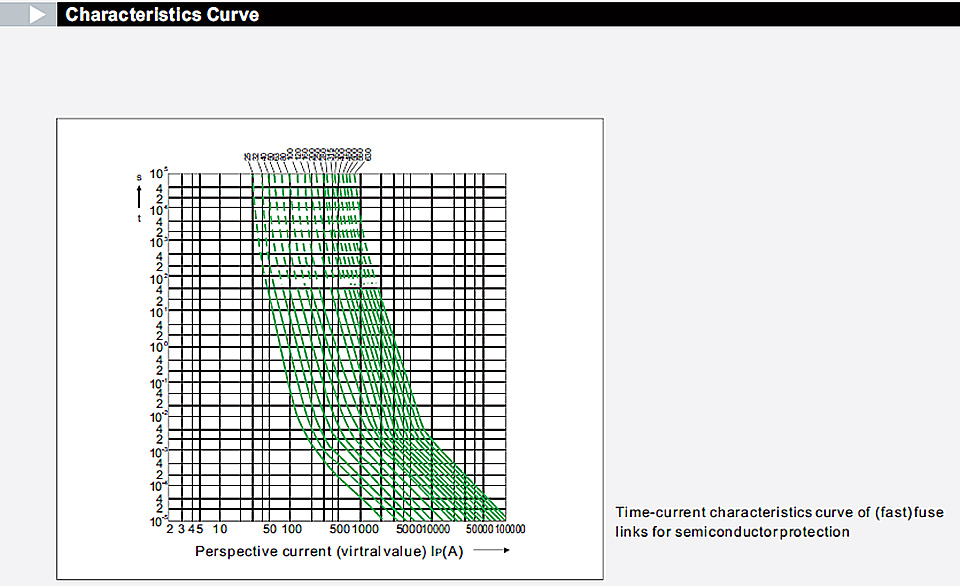

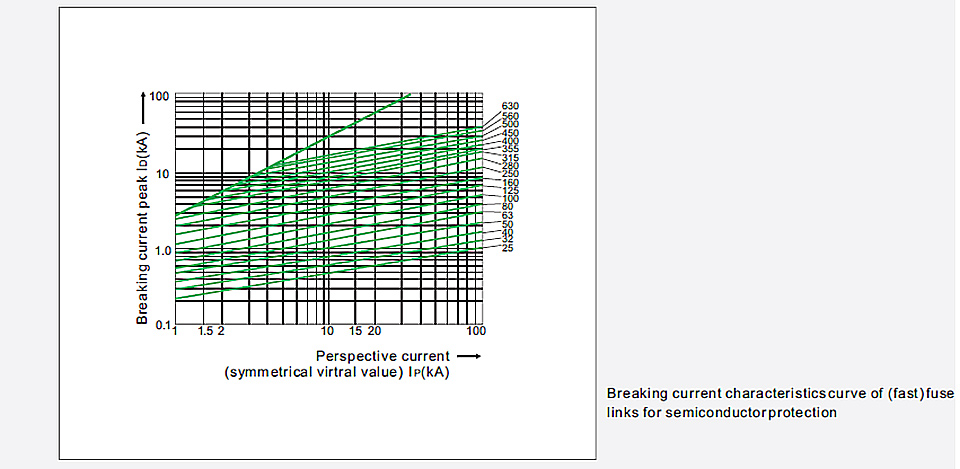

    Basic Data

    The models, dimensions, ratings are shown in Figures 8.1~8.16 and Tables 8.

    Table 8

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H Ød

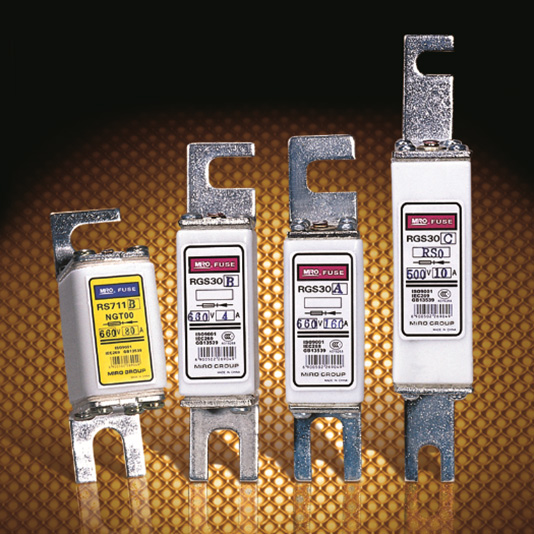

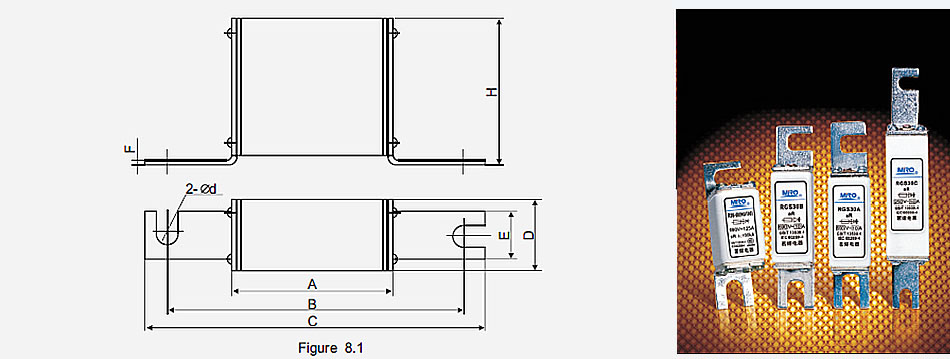

    0701 RS6-00 NGT00/RS711B/HLS00 380/800 32~160 8.1 50 77 100 29 27 2 52 11 198.5
    0702 RSG30A 3NE87 590 10~100 8.1 50 77 98 21 20 2 42 9 122
    0703 RSG30B 590 10~100 8.1 50 77 98 21 20 2 37 9 110
    0704 RSG30C RS0-250V 250 10~100 8.1 50 100 115 25 16 2 45 7 138
    0705 RSG30C RS0-500V RS3-500V 500 10~100 8.1 70 120 135 25 16 2 45 7 163
    Bolt Connected Square01

    Table 8(Cont.)



    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H Ød

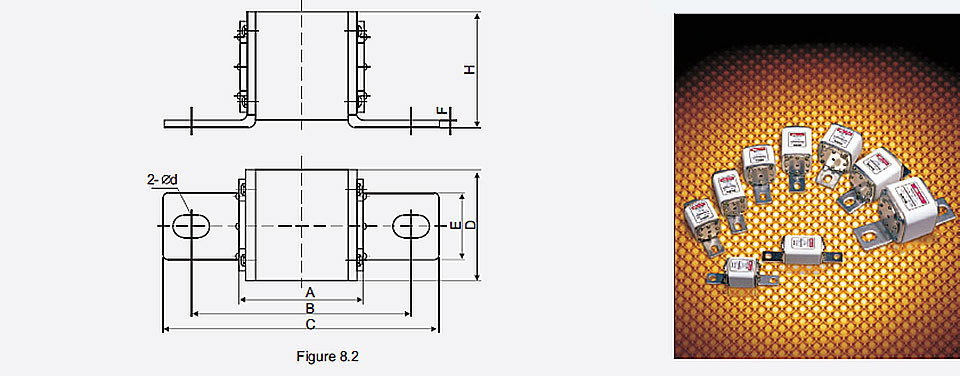

    0706 RGS36 RS0/RS3 250 32~200 8.2 52 100 120 40 20 2 48 9×12 277.5
    0707 RGS32 RS0/RS3 250 63~250 8.2 55 100 125 48 29 3 50 9×17 400
    0708 RGS33 RS0/RS3 250 80~160 8.2 55 100 130 58 30 3 60 11×17 542
    0709 RGS34 RS0/RS3 250 63~160 8.2 59 100 135 67 40 5 72 14×20 950
    0710 RGS36 RS0/RS3 500 32~200 8.2 72 120 140 40 20 2 48 9×12 336.5
    0711 RGS32 RS0/RS3 500/750 63~250 8.2 75 120 145 48 29 3 50 9×17 482
    0712 RGS33 RS0/RS3 500/750 63~250 8.2 75 120 145 58 30 3 60 11×17 670
    0713 RGS34 RS0/RS3 500/750 160~630 8.2 79 120 155 67 40 5 72 14×20 1058

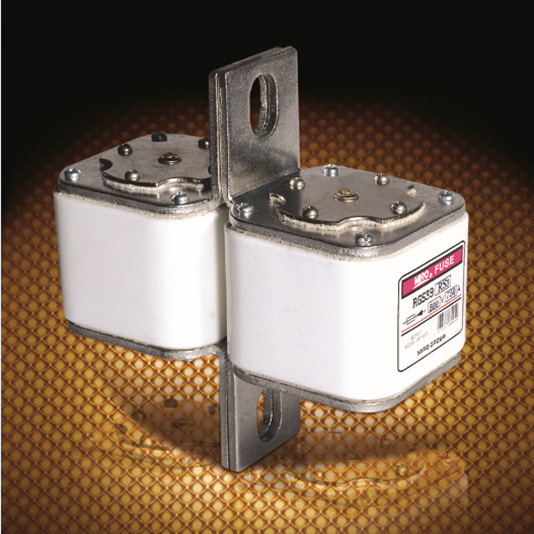

    0714 RGS39 RS3 500/750 500~1000 8.2 79 145 185 86 50 5 90 18×28 1760
    Bolt Connected Square02

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig.

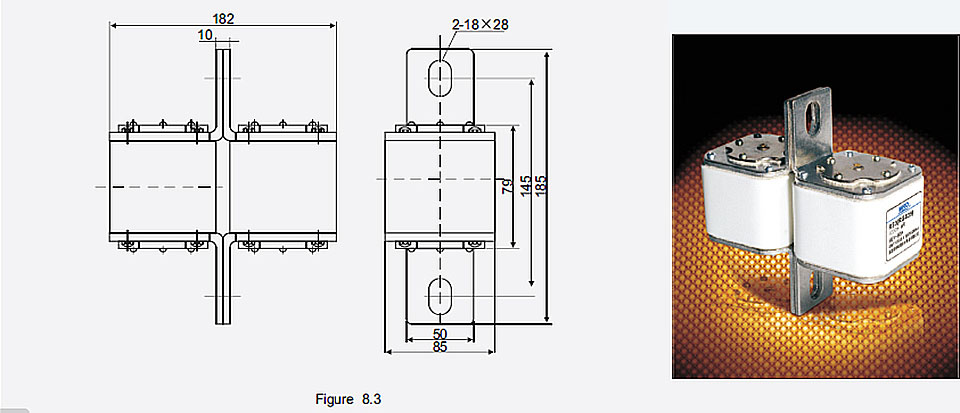

    0715 RGS39 RS3-750V 750 800~1500 See Figure 8.3 1730
    Bolt Connected Square03

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F Ød

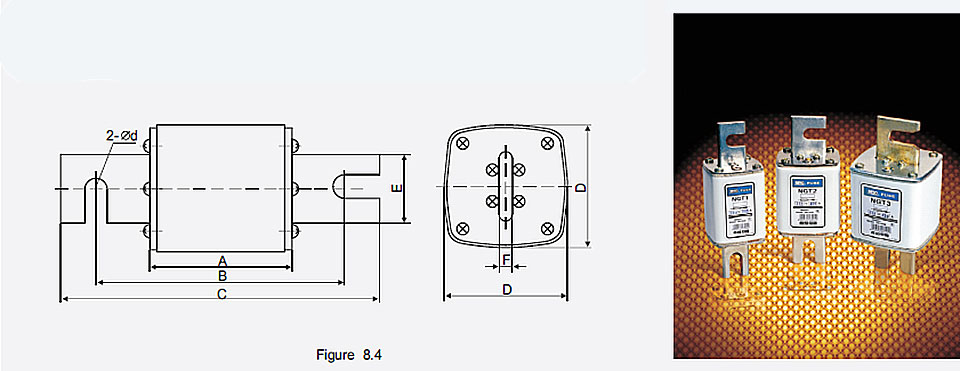

    0716 NGT1 RS6-1 400/690/1000 100~250 8.4 68 110 140 48 25 6 10.5 458
    0717 NGT2 RS6-2 400/690/1000 200~400 8.4 68 110 140 58 32 6 10.5 654
    0718 NGT3 RS6-3 400/690/1000 355~630 8.4 68 110 140 68 38 6 10.5 920
    Bolt Connected Square04

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H Ød

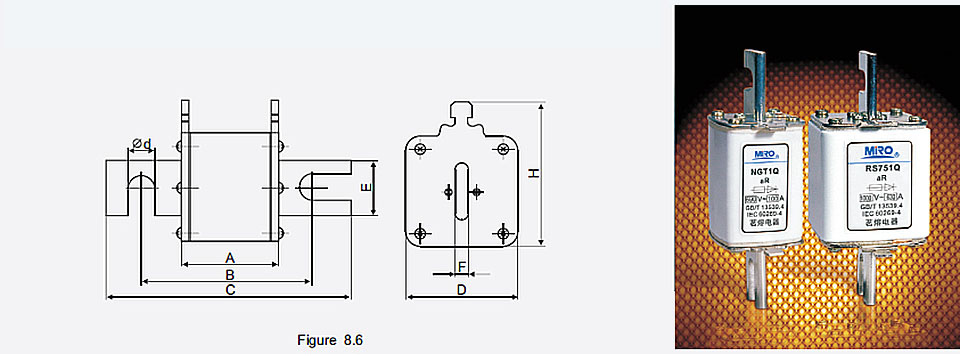

    0720 NGT1Q 3NE32... 690/1000 100~250 8.6 68 108 140 48 20 6 58 10.5 465
    0721 RS75AQ 3NE32... 690/1000 300~630 8.6 68 108 140 60 32 6 78 12.5 730
    Bolt Connected Square05

    Table 8(Cont.)



    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H Ød

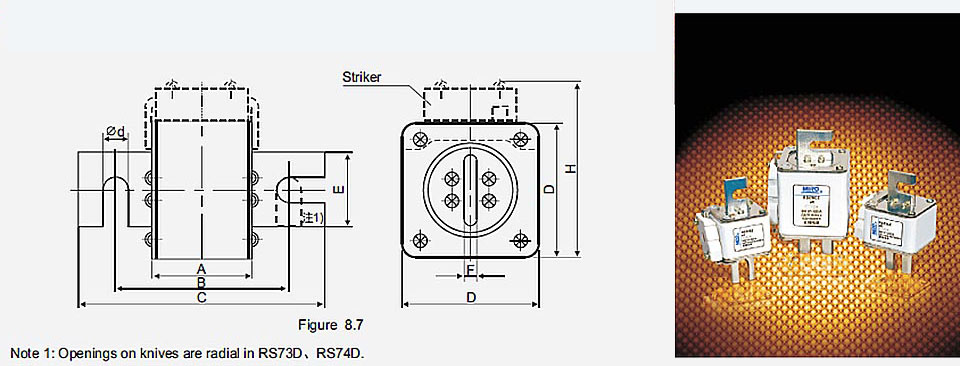

    0722 RS72B A1-66C-D8 690 200~400 8.7 44 76 108 50 25 6 68 10.5 360.5
    0723 RS72C A1-66C-D1 690 315~400 8.7 44 108 140 50 25 6 68 10.5 383
    0724 RS73A A1-66C-D8 690 250~630 8.7 44 76 108 60 32 6 78 10.5 527
    0725 RS73B A1-66C-D1 690 250~630 8.7 44 108 140 60 32 6 78 10.5 551
    0726 RS73D 690 200~400 8.7 44 92 127 60 32 6 78 13 550
    0727 RS74A A1-66C-D8 690 400~800 8.7 44 76 108 73 38 6 90 12.5 810
    0728 RS74B A1-66C-D1 690 500~800 8.7 44 108 140 73 40 6 90 12.5 860
    0729 RS74D 690 500~800 8.7 44 92 127 73 32 6 90 13 944
    0730 RS75A 690/1000 450~630 8.7 66 108 140 60 32 6 78 12.5 700
    0731 RS75B 690/1000 500~630 8.7 76 108 140 60 32 6 78 12.5 770
    0732 RS76AYK 170M61 690/1000 630~800 8.7 66 108 140 72 38 6 90 10.5 1045
    0733 RS76C 170M62 690/1000 630~800 8.7 76 108 140 72 38 6 90 12.5 1436
    0734 RS450 3NE7637-1 1500 200~450 8.7 172 208 240 74 32 6 92 12.5 1965
    Bolt Connected Square06

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H Ød

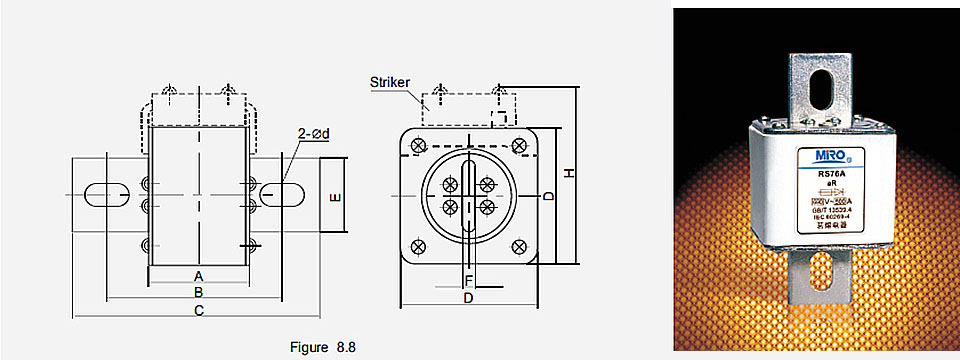

    0735 RS72M 690 200~400 8.8 44 84 124 50 25 6 68 11×30 620
    0736 RS76A 690/1000 500~800 8.8 68 102 140 72 38 6 90 12.5×22 1055
    0737 RS76B 690/1000 500~800 8.8 68 108 140 72 38 6 90 12.5×22 1040
    0738 RS89B 1000 800~1600 8.8 70 107 150 105 50 16 120 14×23 2800
    Bolt Connected Square07

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig.

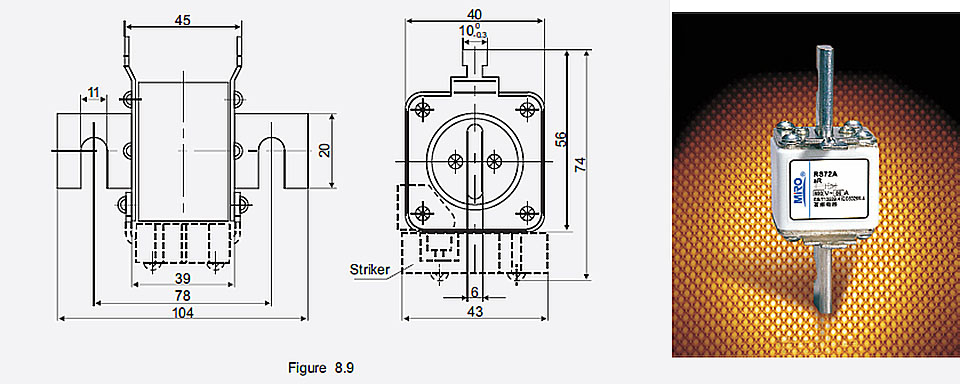

    0739 RS72A(Z) 690 80~315 See Figure 8.9 238
    Bolt Connected Square08

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A C D H md

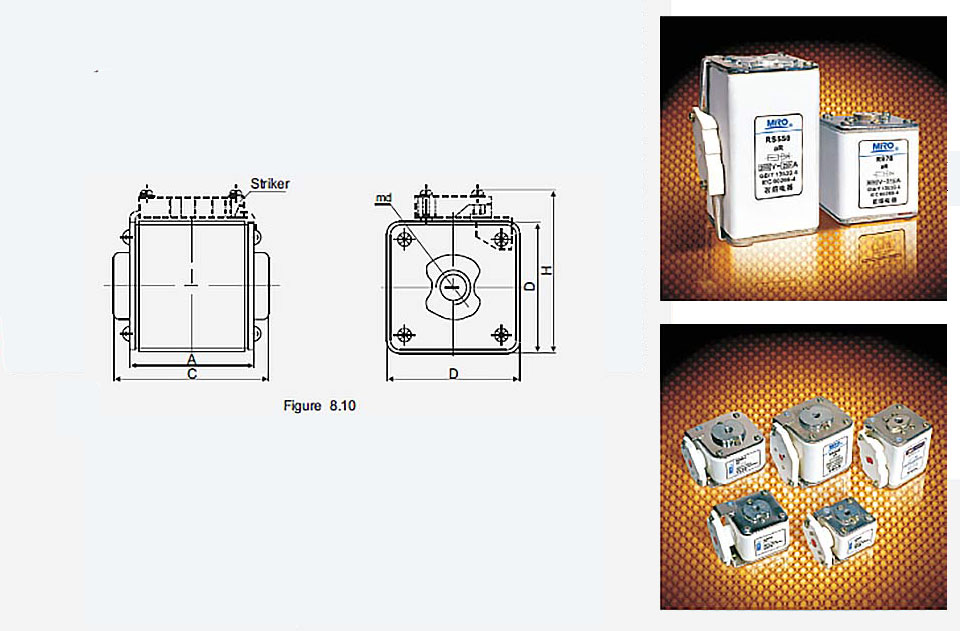

    0740 RS550 2000 250~550 8.10 130 136 74 73 12 1960
    0741 NGT3M 410/690/1000 355~630 8.10 67 76 67 85 12 910
    0742 RS77 A1-66C-TS 690 200~400 8.10 42 51 50 68 8 354
    0743 RS77A A0-66C-TS 690 80~160 8.10 42 51 40 58 8 225
    0744 RS77B A2-66C-TS 690 400~630 8.10 42 51 60 78 10 518
    0745 RS77C A3-66C-TS 690 630~1000 8.10 45 54 74 92 12 865
    0746 RS77H 1000 200~400 8.10 66 76 50 68 8 528
    0747 RS78 3NE43..6B 690 315~500 8.10 66 77 60 77 10 660
    0748 RS79 1000 400~1000 8.10 92 106 74 92 12 1655
    0749 RS79A 170M34 690 200~400 8.10 46 52 43 61 8 277
    0750 RS79C 1000 400~1000 8.10 77 85 74 92 12 1325
    0751 RS79D 140M63 1000 800~1000 8.10 67 75 74 92 12 1170
    0752 RS79E 170M64 1000 630~1000 8.10 87 95 74 92 12 1420
    0753 RS550(Z) 2000 250~550 8.10 135 143 74 92 12 1985
    0754 RS82 CS5F 500 75~200 8.10 40 47 47 70 8 325
    0755 RS83 CS5F 500 200~400 8.10 43 51 57 82 8 150
    0756 RS84 CS5F 500 450~630 8.10 42 53 72 92 10 830
    0757 RS85 CS10F 500 200~630 8.10 66 76 60 77 10 740
    0758 RS86 3NE64 500 300~700 8.10 66 77 72 92 10 1110
    0759 RS86A(Z) RSF-4 500/800 800~1250 8.10 68 78 85 130 12 1200
    0760 RS86H 1000 300~700 8.10 86 98 72 92 10 985
    0761 RS87 REF-5 500/800 1250~1600 8.10 70 80 105 150 16 1320
    0762 1000 1250~1600 8.10 80 90 105 150 16 1650
    0763 RS87A(Z) RSF-5 250 1600~2500 8.10 51 61 120 165 16 1985
    0764 500/800 1600~2500 8.10 71 81 120 165 16 2216
    0765 1000 1600~2500 8.10 81 91 120 165 16 2356
    0766 RS88A 690 800~1600 8.10 78 90 105 127 16 1240
    Bolt Connected Square09

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A C D H md

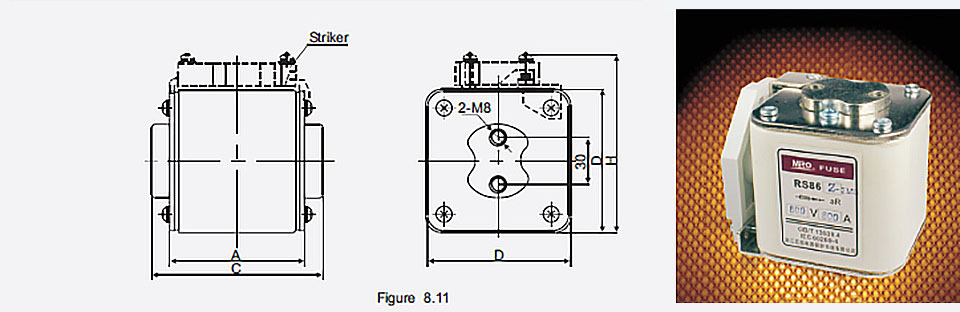

    0767 RS86-2M8 500 300~700 8.11 66 77 72 92 1110
    0768 RS86H-2M9 1000 300~700 8.11 86 97 72 91 2255
    Bolt Connected Square10

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig.

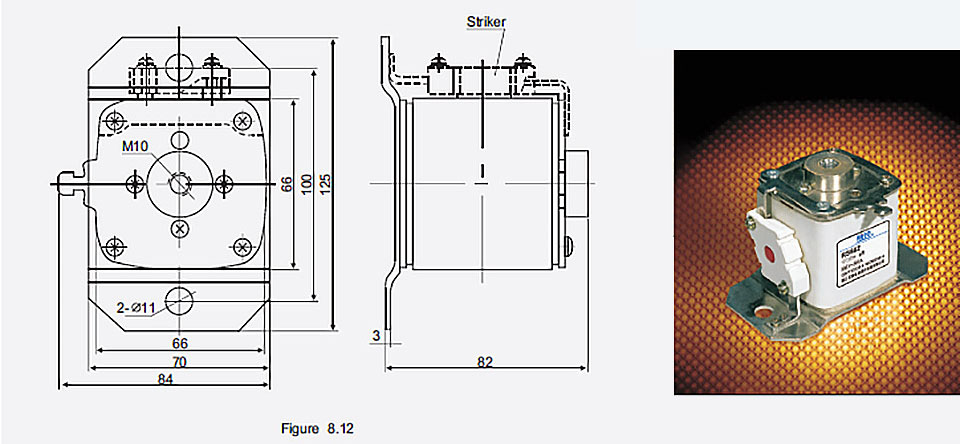

    0769 RS88 690 630~800 See Figure 8.12 955
    Bolt Connected Square11

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig.

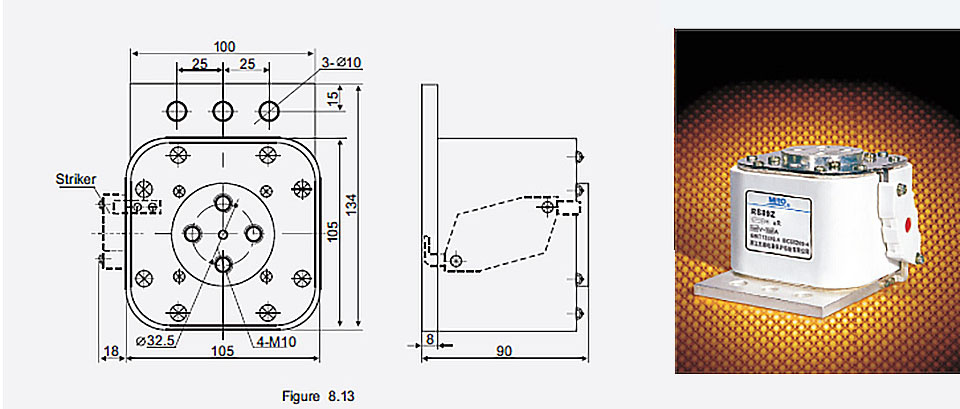

    0770 RS89(Z)  170M70 1000 1000~1600 See Figure 8.13 2930
    Bolt Connected Square12

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D E F H H1 md

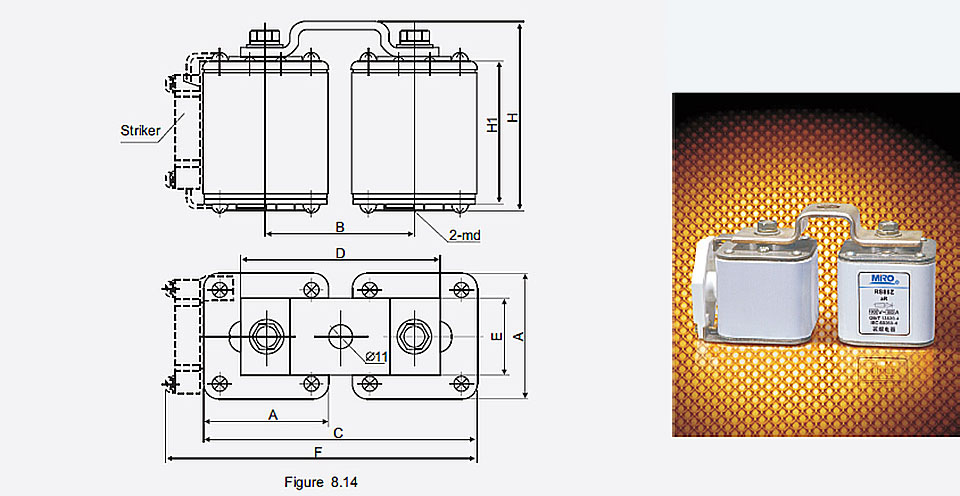

    0772 RS85-2H 1000 800~1250 8.14 60 72 132 95 36 146 93 68 10 1500
    0773 RS86-2H RSF-3-P2K 1000 800~1400 8.14 73 92 162 140 40 180 102 76 10 2504
    0774 RS79D-2P 1000 800~1250 8.14 74 90 164 120 50 164 95 76 12 2460
    Bolt Connected Square13

    Table 8(Cont.)

    Cat.
    NO.    		 Models Rated voltage(V) Rated current(A) Dimensions/size(mm) Weight (g)
    MIRO Cross-reference Fig. A B C D H H1 md

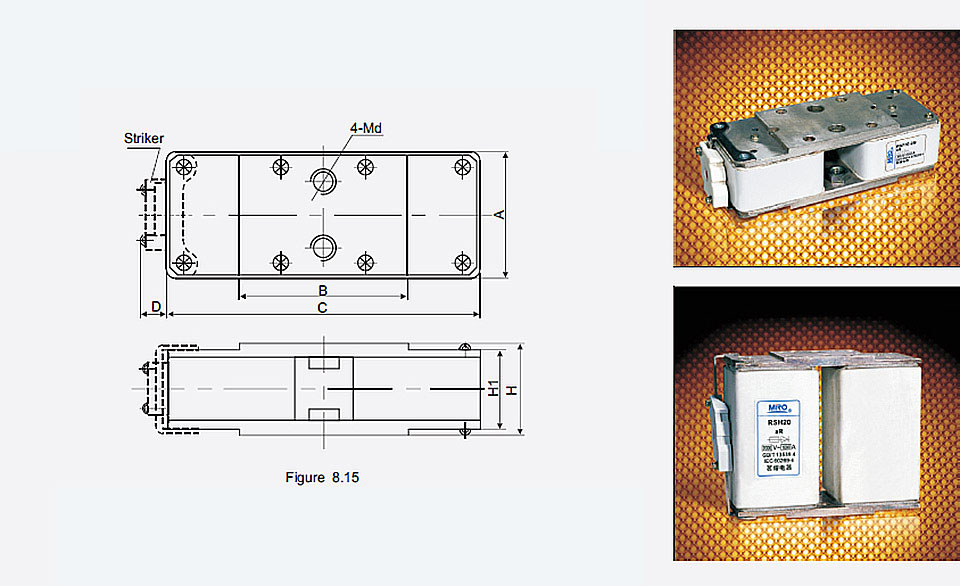

    0776 RS77C-2M 690 1000~2000 8.15 75 100 185 18 55 47 12 2700
    0777 RSH20 2000 1000~2000 8.15 75 80 165 18 140 132 12 3890
    0778 RS79D-2M 1000 1000~2000 8.15 75 80 165 18 78 70 12 3260
    Bolt Connected Square14
