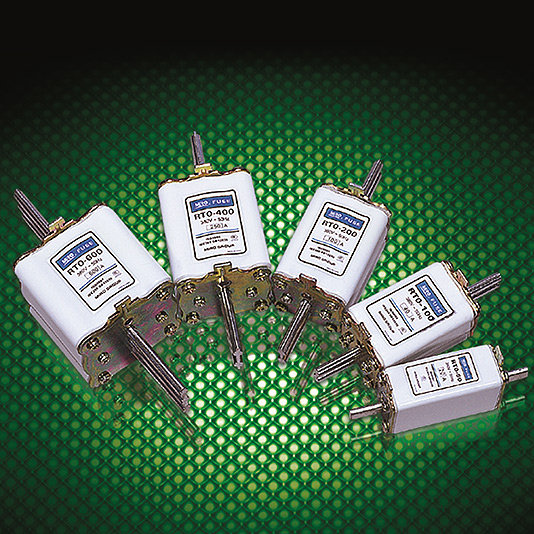

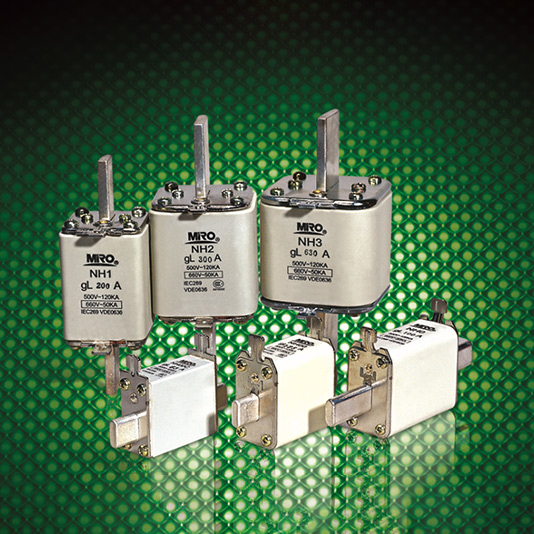

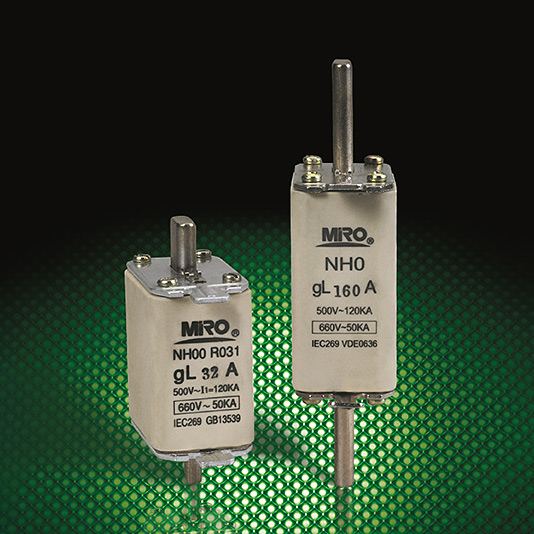

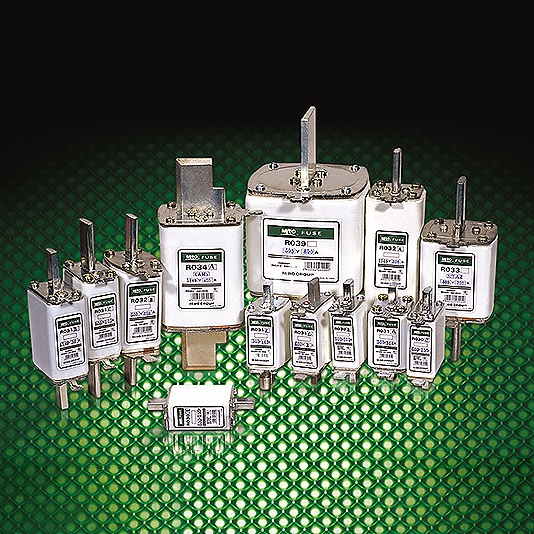

    • Square Pipe Fuse Links With Knife Contacts

    Square Pipe Fuse Links With Knife Contacts Featured Image
    • Square Pipe Fuse Links With Knife Contacts
    • Square Pipe Fuse Links With Knife Contacts
    • Square Pipe Fuse Links With Knife Contacts
    • Square Pipe Fuse Links With Knife Contacts
    • Square Pipe Fuse Links With Knife Contacts

    Short Description:

    Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic, Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Indicator or striker may be attached to the fuse link to show cutout of fuse or to give various signals and to cut the circuit automatically.


    Product Detail

    Product Tags

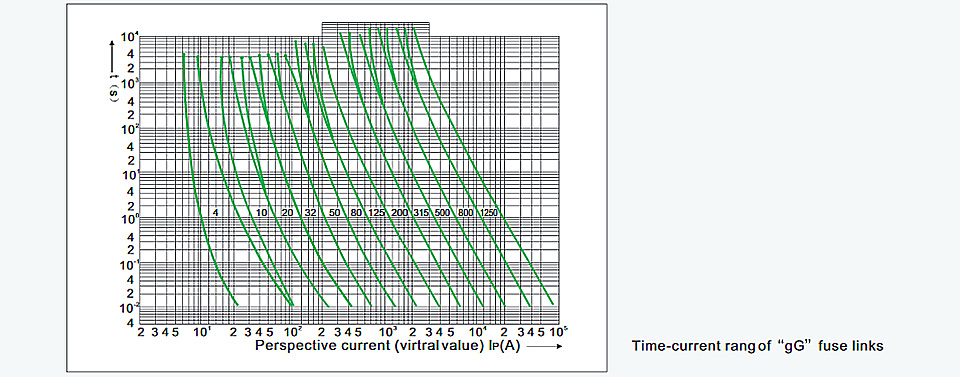

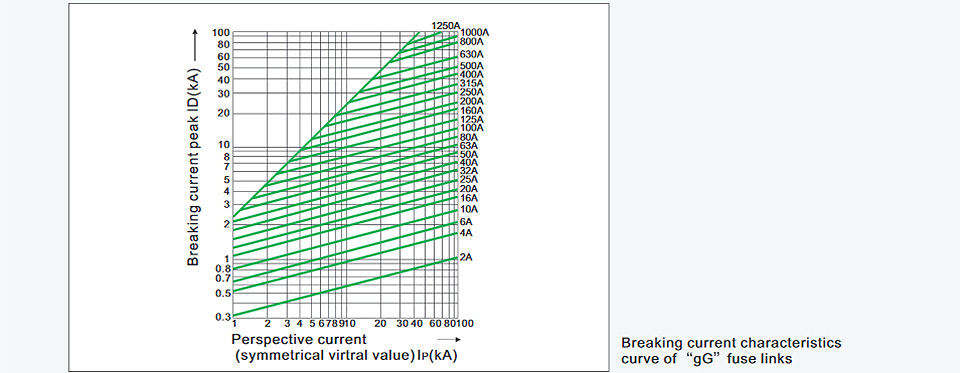

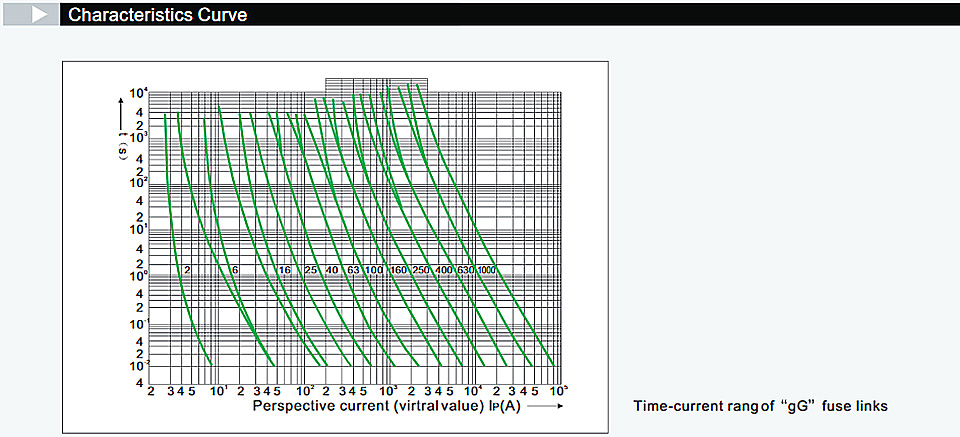

    Applications

    Protection against overload and short-circuit in electric lines(type gG), also available for protection of semiconductor parts and equipments against short-circuit (type aR) and protection of motors (type aM).

    Design Features

    Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic, Fuse tube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Indicator or striker may be attached to the fuse link to show cutout of fuse or to give various signals and to cut the circuit automatically.

    Basic Data

    The models, dimensions, ratings are shown in Figures 4.1~4.11 and Tables 4.

    Table 4

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current(A)    		 Dimensions
    /sizes
    （mm）    		 Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig.
    0401 NH00C RS30C 500/690 10/100 000 See Figure 4.1 138

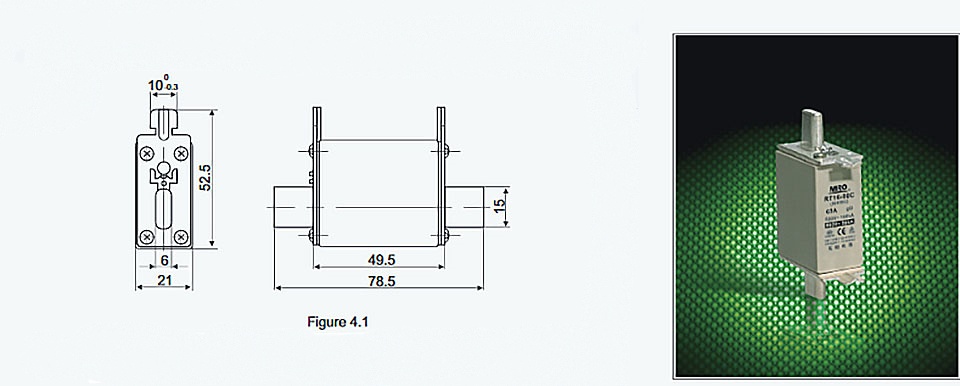

    Square Pipe Fuse Links With Knife Contacts01

    Table 4

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current(A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D H
    0402 NH00 RS31 3NE80
    NGTC00    		 500/690 10/100 00 4.2 78 50.5 15 30 60 201
    0403 NH0 500/690 6/160 0 4.2 125 67 15 30 60 267
    Square Pipe Fuse Links With Knife Contacts02

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current(A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D H
    0404 NH1 RS32 500/690 32/250 1 4.3 135 68 20 46 58 447
    0405 NH2 RS33 500/690 80/400 2 4.3 150 68 30 58 68 727
    0406 NH3 RS34 500/690 160/630 3 4.3 150 68 36 70 82 975

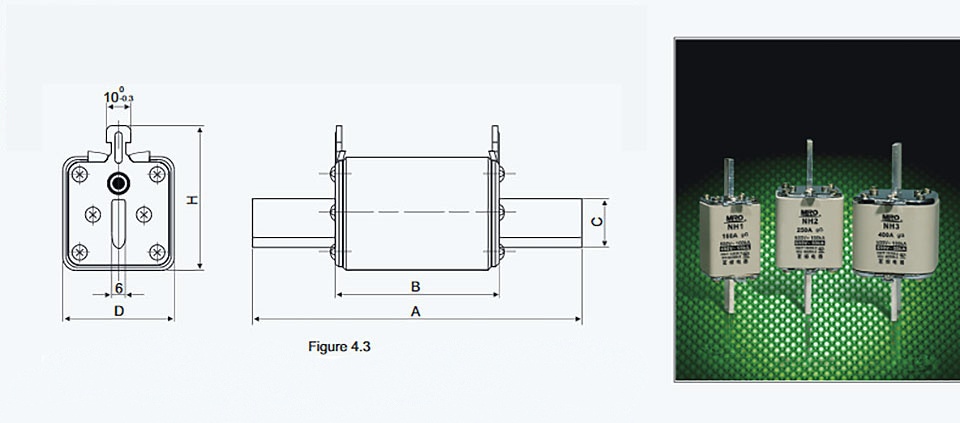

    Square Pipe Fuse Links With Knife Contacts03

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current(A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D H
    0410 RO30A RS30A NT00C 170M1516 500/690 4~100 000 4.4 78 49 15 21 48 123
    0411 RO30B RS30B NT00C 500/690 4~100 000 4.4 78 49 15 21 48 117
    0412 RO30C RS30C 3NA3 3NE18 500/690 10~100 000 4.4 78 49 15 21 52.5 132
    0413 RO31A RS31A PH00 500/690 10~160 00 4.4 78 49 15 30 53 178.5
    0414 RO31B RS31B NT0 3NE41 500/1140 6~160 0 4.4 125 68 15 29 61.5 278
    0415 RO31C RS31C NT1 500/690 32~200 1 4.4 135 68 20 29 61.5 293.5

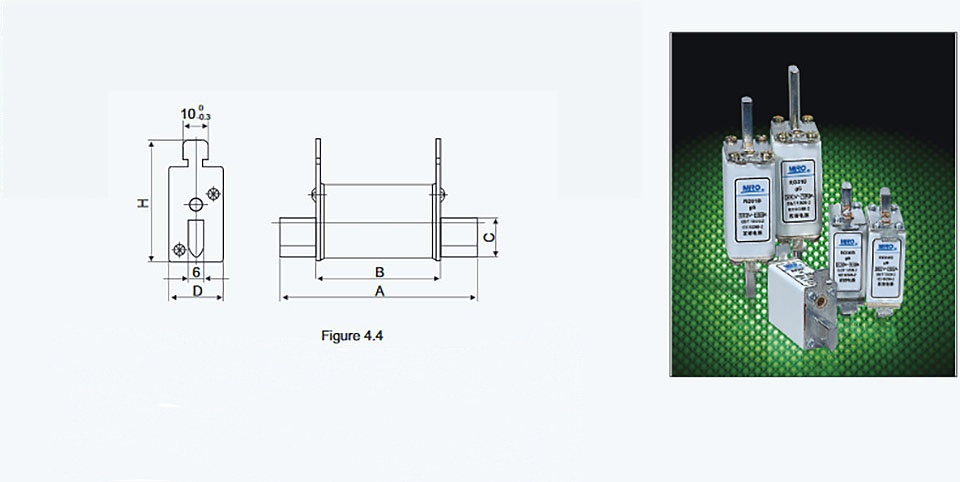

    Square Pipe Fuse Links With Knife Contacts04

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D H
    0416 NT00 RT16-00 500/690 4~160 00 4.5 78 49 15 29 56 175
    0417 NT0 RT16-0 500/690 4~160 00 4.5 125 68 15 29 56 252

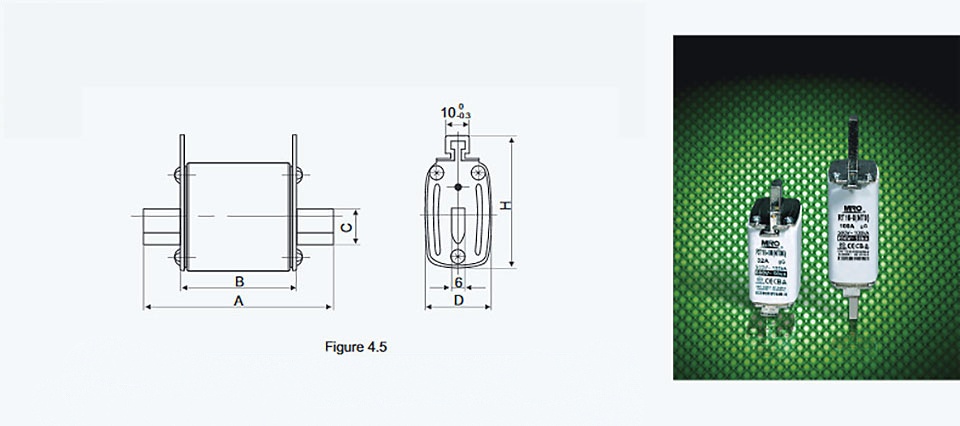

    Square Pipe Fuse Links With Knife Contacts05

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D H
    0418 RT16-1(NT11) RS32 NT1 RT16-1
    3NA1 RT20-1    		 3NE12..
    NGTC1    		 500/690 32~250 1 4.6 135 68 20 48 60 455
    0419 RO32A RS32A 1140 63-250 4.6 172 110 19.5 44 58 570
    0420 RO32B RS32B NT1 RT16-1 500 32~250 1 4.6 135 68 20 40 68 393
    0421 RT16-2(NT2) RS33 NT2 RT16-2
    3MA1 RT20-2    		 3NE13..
    NGTC2    		 500/690 80~400 2 4.6 150 68 25 58 70 650
    0422 RO33B RS33B RT16-2 500 80-400 2 4.6 150 68 25 52 71 580
    0423 RO33C RS33C NT2 RT20-2 170M5811 690 125~550 2 4.6 150 72 30 58.5 73.5 598
    0424 RT16-3(NT3) RS34 NT3 RT16-3
    NH3 RT20-3    		 3NE14..
    NGTC3    		 500/690 60~630 3 4.6 150 68 32 68 80 880
    0425 RO34H RS34H 1500 160~630 4.6 205 123 32 68 71 1050
    0426 RO36 RS36 EAPO 500 32-200 1 4.6 135 68 20 40 59 356
    0427 RO39A RS39A NT4a 380/500 500~1250 4a 4.6 200 90 50 97 113 2140
    Square Pipe Fuse Links With Knife Contacts06

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D E F H
    0428 RO34K RS34K 3NC8 500/690 150~630 3 4.7 140 68 32 68 108 11 85 810
    0429 RO34YK RS34YK 500/690 315~630 3 4.7 140 68 32.0 68 108 11 85 816
    0430 RO38 RS38 3NE3626 500/1000 200~630 3 4.7 160 86 32 68 120 11 82 1050
    0431 RO38KP RS38KP 800 200~630 3 4.7 160 86 32 68 120 11 68 980
    0432 NT4 RS39 NT4 RT17 500 500~1250 4 4.7 200 68 49 97 150 16.5 122 2470
    0433 RO39B RS39B NT48 RT17B 500 500~1000 4 4.7 200 79 50 88.0 150 17 115 2100

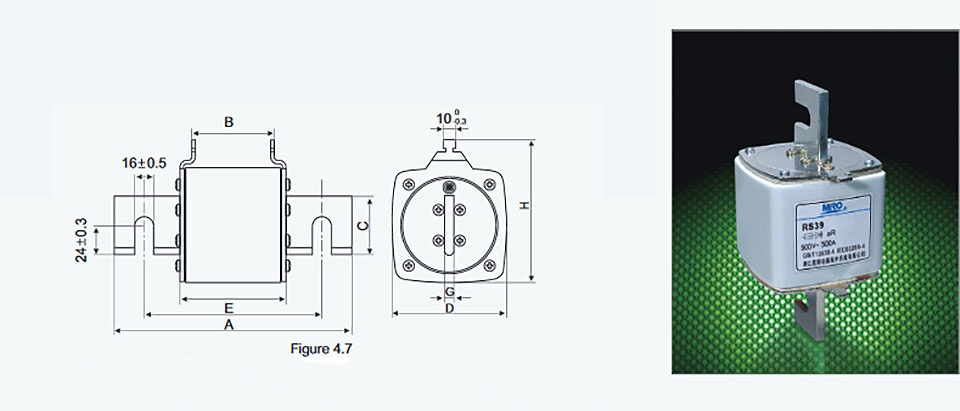

    Square Pipe Fuse Links With Knife Contacts07

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig.
    0434 RO34A RS34A 8SY5023 1140 250~630 See Figure 4.8 1066
    Square Pipe Fuse Links With Knife Contacts08

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D E F G H I

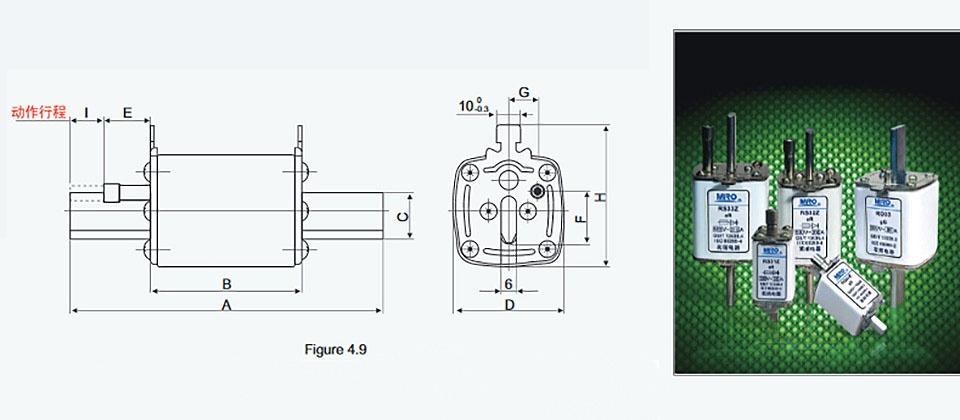

    0435 RO31Z RS31Z RT16A-00 500/690 35~125 00 4.9 78 49 15 29 15 22.5 59.5 8 183
    0436 RO32Z RS32Z RT16A-1 500/690 200~250 1 4.9 135 68 20.0 48 25 14.5 16 60 12 390
    0437 RO33Z RS33Z RT16A-2 500/690 315-400 2 4.9 150 68 25 58 30 14.5 19 70 12 683
    0438 RO34Z RS34Z RT16A-3 500/690 500~630 3 4.9 150 68 32 67 30 14.5 19 82 12 880
    0439 NTA-1 500/690 200~250 1 4.9 135 68 20 48 8 26.5 60 8 380
    0440 NTA-2 500/690 315~400 2 4.9 150 68 25 58.0 8 32 70 8 673
    0441 NTA-3 500/690 500-630 3 4.9 150 68 32 67 8 40 82 8 870
    0442 RO36Z RS36Z 500/690 125~160 4.9 135 68 20 40 25 20 11.5 61 12 369
    Square Pipe Fuse Links With Knife Contacts09

    Table 4(Cont.)

    Cat.
    NO.    		 Models Cross-reference Rated Voltage
    (V)    		 Rated
    Current
    (A)    		 Dimensions/sizes（mm） Weight
    (g)
    MIRO
    gG(Normal) aR(Fast) gG(Normal) aR(Fast) Sizes Fig. A B C D E F G H

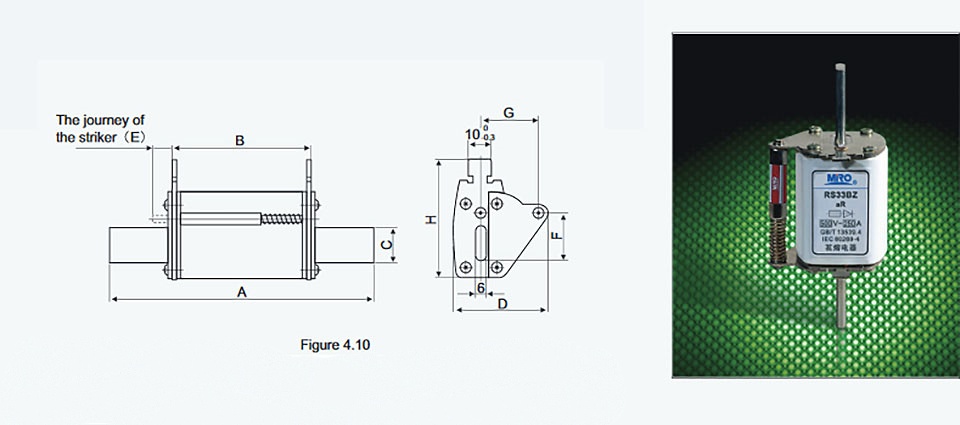

    0443 RO32BZ RS32BZ HLS1 500 125~250 1 4.10 135 68 20 50.5 9 24.5 26 68 380
    0444 RO33BZ RS33BZ HLS2 500 250~400 2 4.10 150 68 25 66.5 9 29 29 71 675
    Square Pipe Fuse Links With Knife Contacts10
